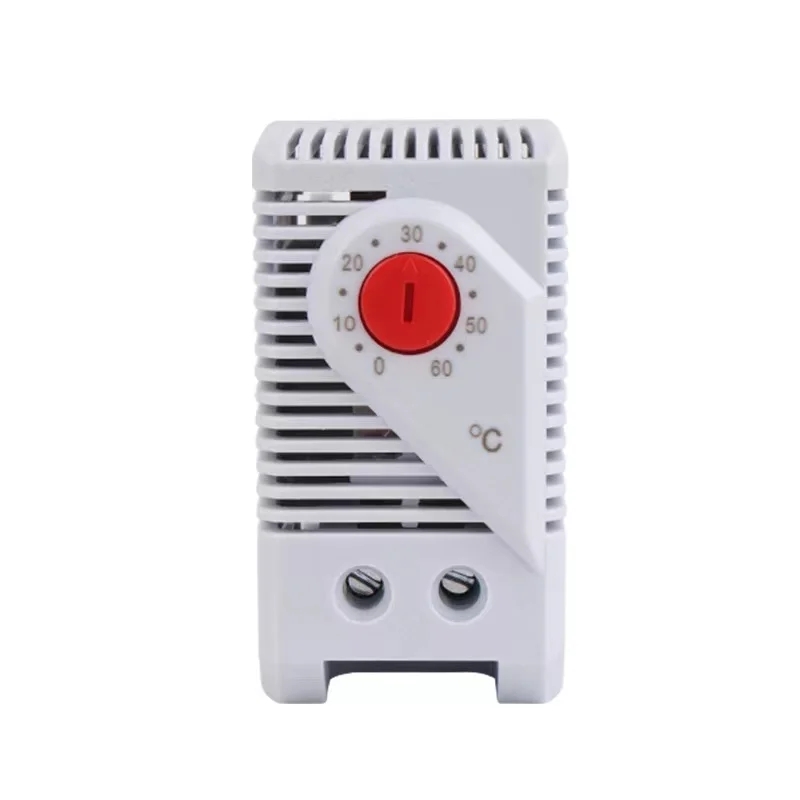

Home > Products > Industrial cabinet temperature controller > KTO 011
This manufacturer and trader offers quality control, holds product certifications, and primarily exports to the United States, Venezuela, and Ecuador with a positive review rate of 98.5%.
Specifications:
| Place of Origin | China |
| Product | Support product customization, including logo, product color, |
| packaging, etc | |
| HS code | 8536300000 |
| OTY/CTN | 200PCS/CTN |
| Specification | Switch temperature difference：7K(±4K tolerance) |
| Sensor element：Thermostatic bimetal | |
| Contact resistance：10mO | |
| Service life：100,000 cycles | |
| Max. Switching capacity：250VAC,10(2)A/120CAC,15(2)A/DC 30W | |
| EMC：Acc. To EN 55014-1-2,EN61000-3-2,EN61000-3-3 | |

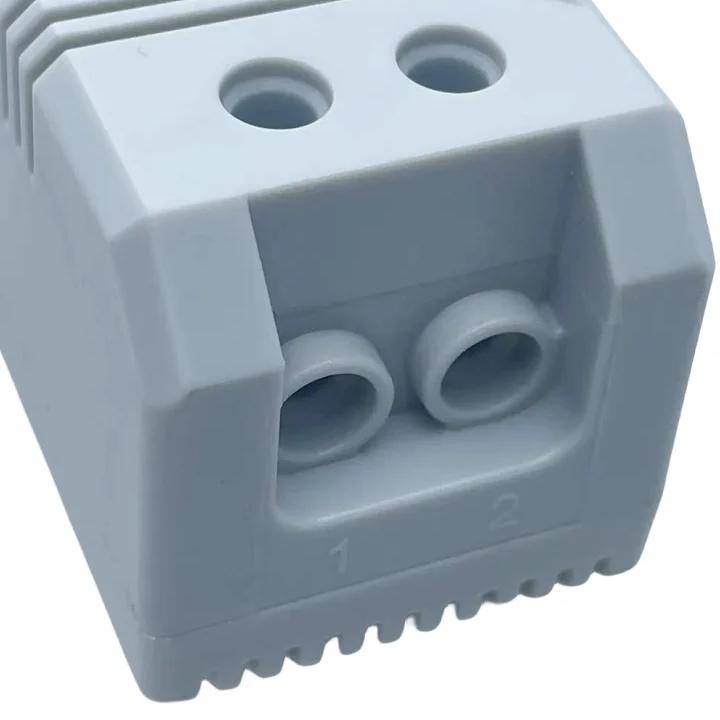

| Connection：2-pole terminal, clamping torque 0.5Nm max.:/Rigid wire 2.5mm2/Stranded wire (with wire end ferrule) 1.5mm² | |
| Mounting：Clip for 35mm DIN rail, En50022/(or for exit filter EF 118 Series) | |
| Casing：plastic according to UL94-HB, black | |
| Dimensions：60x33x43mm | |
| Weight：Approx.40g | |
| Fitting position：Variable | |
| Operating/Storage temperature：-45 to +80℃(-49 to +176°F) | |
| Protection type：IP20 | |
| Gross Weight | 12kg |
| CTN Size | 45*20*38 |

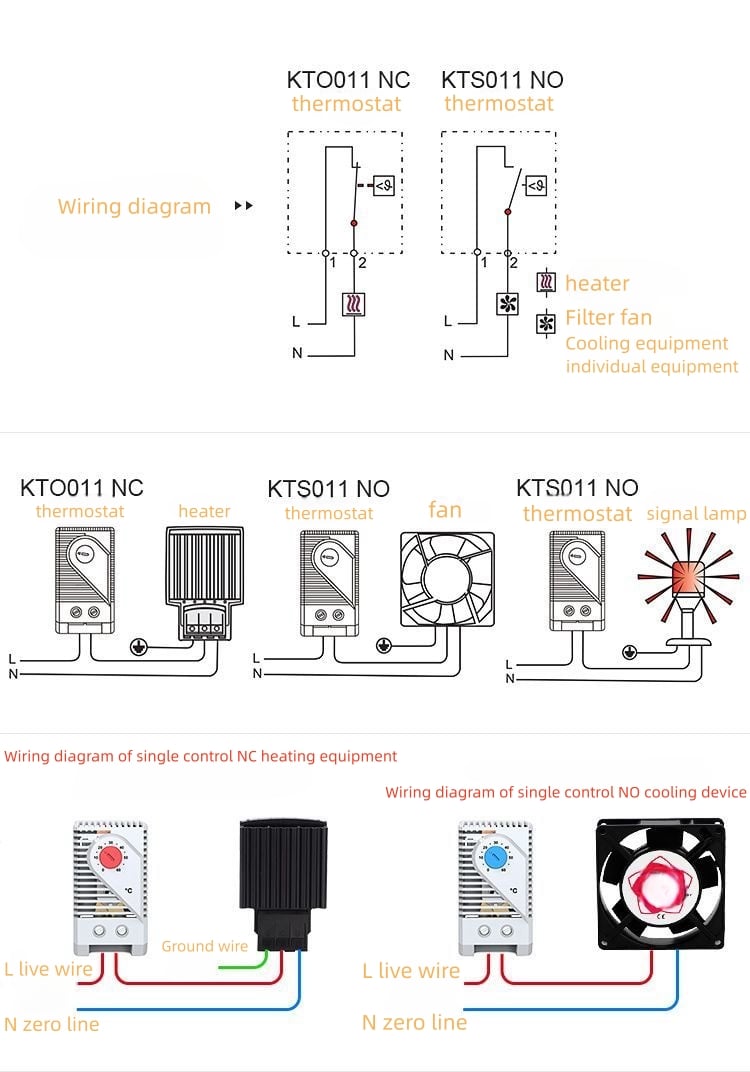

Mainly used in cabinets, cabinet control fans for heat dissipation and heater heating, CNC lathes (precise temperature control), equipment production (intelligent temperature control), scientific instruments (real-time temperature control), distribution boxes (scientific temperature control), the product is widely used, suitable for indoor and outdoor electrical, industrial, engineering, warehouse, electronics, power, and so on.
1、Voltage protector, refrigerator protector, safety upgrade, more sensitive response, six major functional features, quality.
2、Certification, precision circuit, flame-retardant plastic, tool free installation, high-quality touch, durability, high-performance chip, higher stability and strong accuracy, instantaneous protection against over-voltage/under-voltage, and self-checking of working status based on power consumption status！
3、Possess rich industry knowledge and experience, and be able to provide professional solutions and services.
4、Possess a certain competitive advantage in terms of price, providing cost-effective products/services with high-quality/reliable performance.
5、Close cooperation with customers, including understanding and meeting their needs, as well as high-quality after-sales support and services.
6、The company has a good reputation and recognition in the industry.
7、The company has reliability, stability, and sustainability in long-term business operations.
Q：Are you a Source factory?
A：Yes, we are the source factory, in this industry has ten years of manufacturing experience and technology, with 2870 square meters of production workshop.
Q：How about the quality of your products?
A：We have professional quality control links from raw material procurement to production process to ensure product consistency and quality stability, and will require suppliers to provide ISO quality certification and control the quality source in an all-round way.
Q：Do your products meet the quality standards and regulations of the importing country?
A：Our products have obtained CE certification and other corresponding qualifications to meet local quality requirements.
Q：Does your company support customization?
A：Yes, our company has its own brand, and we also support customers to customize trademarks.
Q：What is the minimum order quantity (MOQ) of your company?
A：Our company's minimum Order quantity (MOQ) is very flexible, and we will negotiate with customers about the appropriate MOQ to avoid excessive financial pressure on customers.
Q：Can you ensure delivery on time?
A：Our factory has a strong production capacity, while maintaining a reasonable production inventory level, can effectively ensure on-time delivery, to ensure the supply needs of customers.
Q：How long is the delivery time?
A：After the order is confirmed and the advance payment is received, the regular products will be shipped on time according to the delivery time agreed on in the contract, which can be as short as a few days or as long as three to four weeks.
Q：What is the company's return policy?
A：If it is due to product quality problems or defects, within the specified period, customers can contact the company, after verification and confirmation can be returned or repaired to protect the rights and interests of customers.
