product wholesale customized good quality electronic time relay 12v function time relay-0

DH48S-1Z

Home >  Products >  Time relay >  DH48S Series >  DH48S-1Z

Products

Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay
Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay

Wholesale Customized Good Quality Electronic Time Relay 12V Function Time Relay

Get a Quote
  • Product Description

Product Description

Products Description
product wholesale customized good quality electronic time relay 12v function time relay-1
Time relay is a very important component in the electrical control system. In many control
systems, it is necessary to use the time relay to achieve delay control. Time relay is an automatic control electrical appliance that uses the principle of electromagnetic or mechanical action to delay the closing or breaking of contacts. Its characteristic is that there is a delay from the time the attracting coil gets the signal to the action of the contact.
Power： 85-110%
Rated voltage: AC 110V/ 220V/ 380V
DC 12V/24V/36V
Delay control accuracy: ≤0.3%±0.05s
Contact Capacity: AC 220 5A (Resistive load)
DC 30 5A (Resistive load)
Mechanical life: ≥107 time
Electrical life: ≥105 time
Ambient temperature: -10℃~+50℃
Power consumption: ≤5W
Altitude: <2000m
Model
DH48S-1Z
Contact capacity
AC 250V 3A
Contact
one delay contacts
Dimension
48*48*98cm
Installation
By Panel, by 35mm rail
voltage
AC 110V/ 220V/ 380V; DC 12V/24V/36V
Operation type
power On delay
Delay range
0.1s-99H; 0.01S-99H99M
product wholesale customized good quality electronic time relay 12v function time relay-2

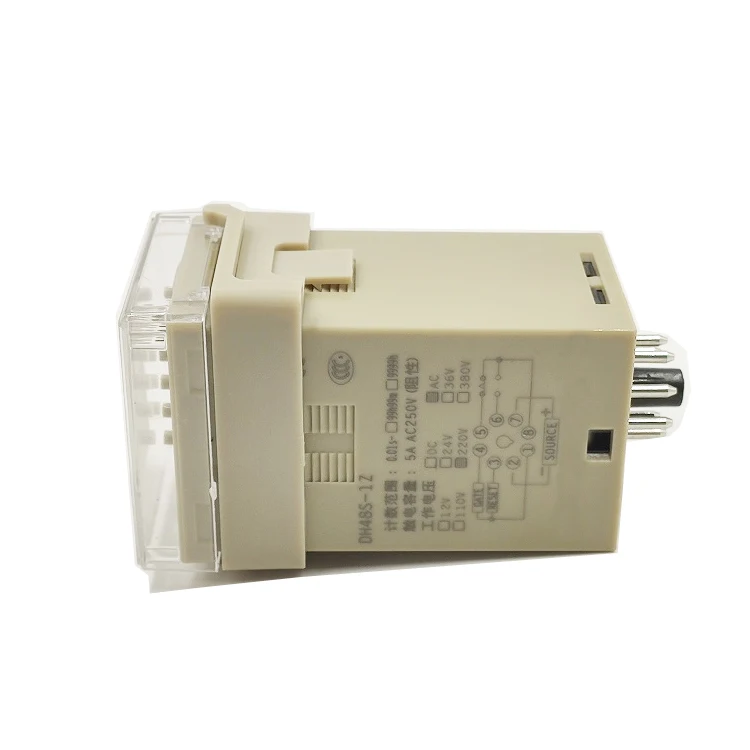

product wholesale customized good quality electronic time relay 12v function time relay-3
product wholesale customized good quality electronic time relay 12v function time relay-4
product wholesale customized good quality electronic time relay 12v function time relay-5
product wholesale customized good quality electronic time relay 12v function time relay-6

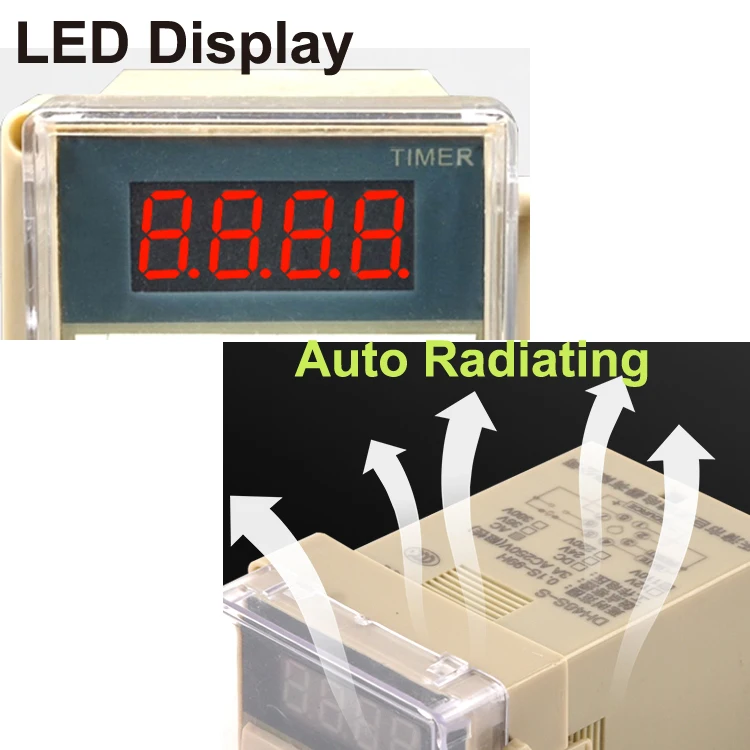

product wholesale customized good quality electronic time relay 12v function time relay-7
product wholesale customized good quality electronic time relay 12v function time relay-8
product wholesale customized good quality electronic time relay 12v function time relay-9
product wholesale customized good quality electronic time relay 12v function time relay-10

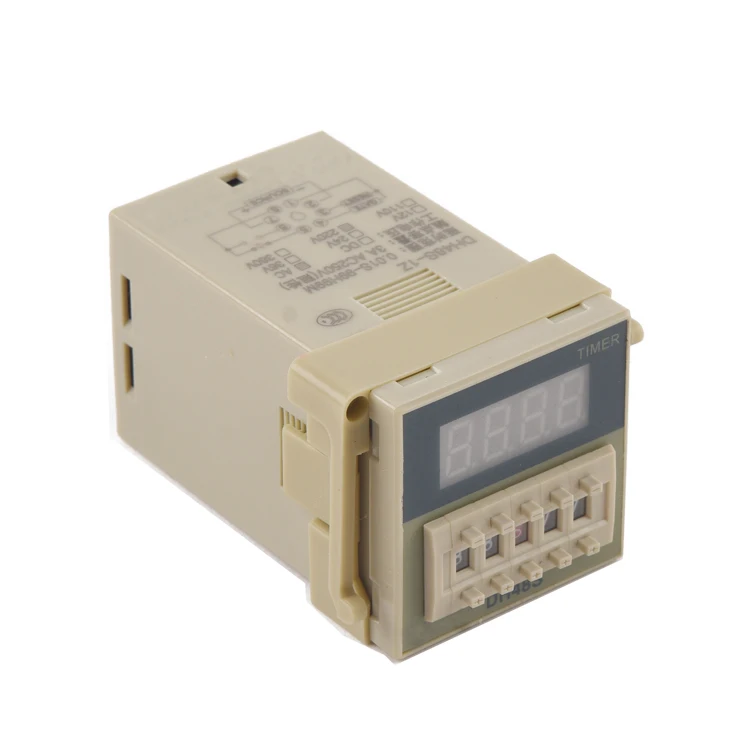

product wholesale customized good quality electronic time relay 12v function time relay-11
More Products
product wholesale customized good quality electronic time relay 12v function time relay-12
About Us
product wholesale customized good quality electronic time relay 12v function time relay-13
Certificate
product wholesale customized good quality electronic time relay 12v function time relay-14
Product Process
product wholesale customized good quality electronic time relay 12v function time relay-15
Transportation
product wholesale customized good quality electronic time relay 12v function time relay-16
FAQ
product wholesale customized good quality electronic time relay 12v function time relay-17
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7 days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
