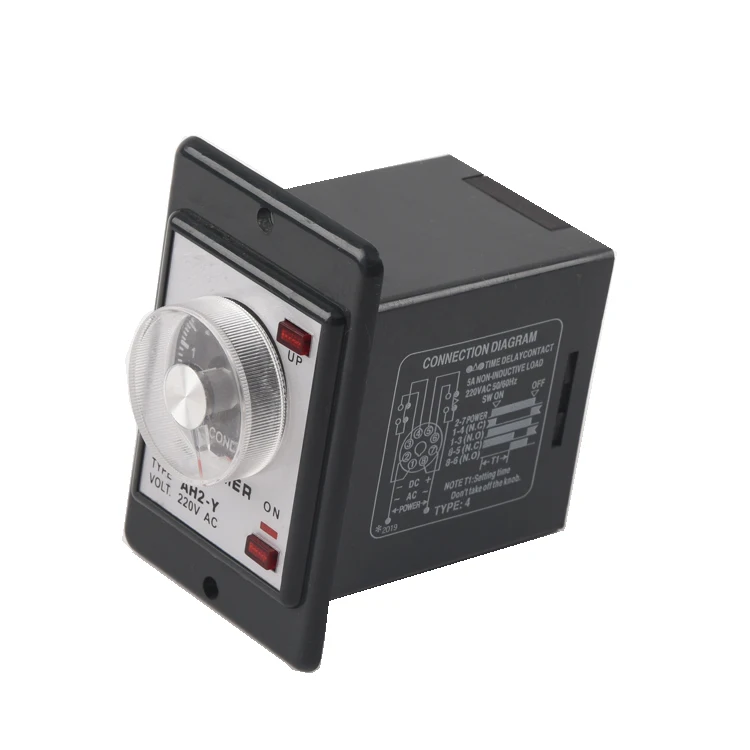

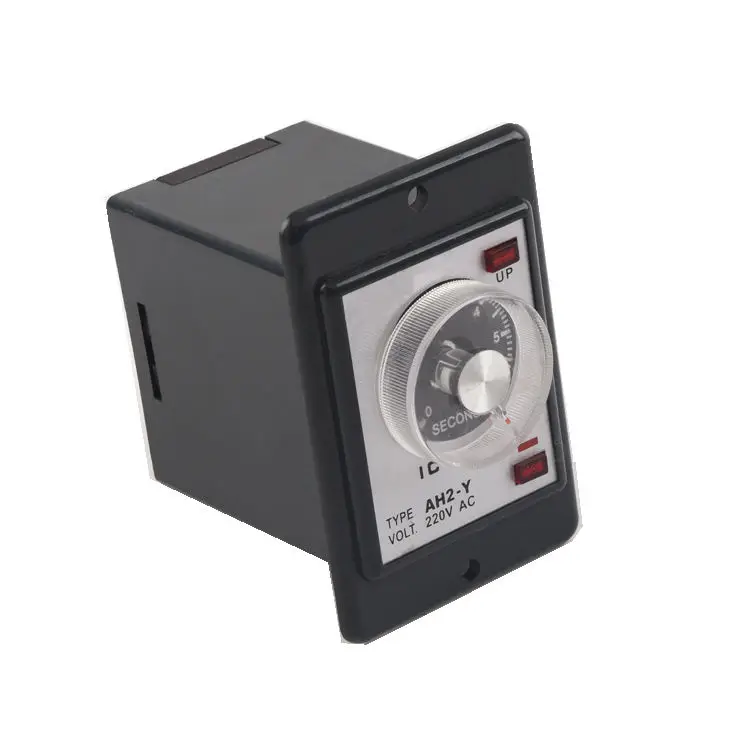

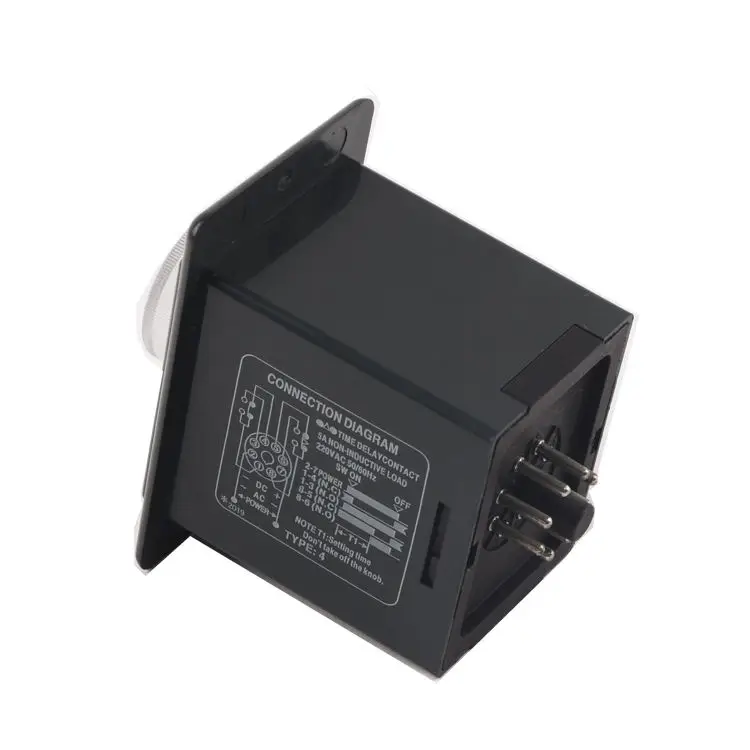

Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V
Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V

Time Relay AH2-Y Power on Delay 220VAC DC24V AC380V

Get a Quote
  • Product Description

Product Description

Products Description
product time relay ah2 y power on delay 220vac dc24v ac380v-1
Time relay is a very important component in the electrical control system. In many control systems, it is necessary to use the time relay to achieve delay control. Time relay is an automatic control electrical appliance that uses the principle of electromagnetic or mechanical action to delay the closing or breaking of contacts. Its characteristic is that there is a delay from the time the attracting coil gets the signal to the action of the contact.
product time relay ah2 y power on delay 220vac dc24v ac380v-2
1. TechnicalParameter
- Using CMOS IC lower power consumption high reliability and stability
- 15 different time ranges from 0.1 sec to 24 hrs available (Each time range the product is individually customized)
- Power Supply
Non universal voltage: AC(V) 12 ,24, 110, 220 ,240 50/60Hz , DC(V) 12, 24
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.

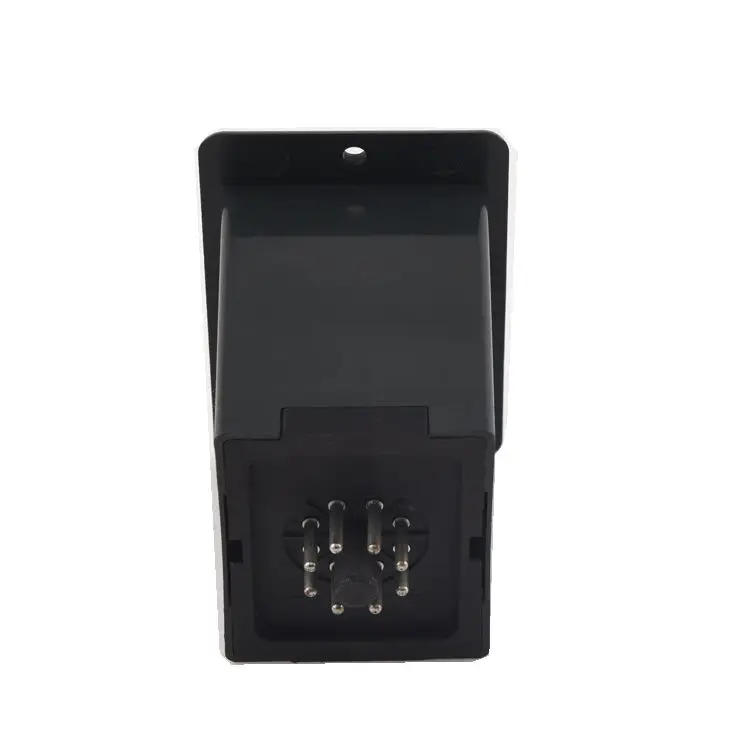

- Front panel mounted with a P3G-08/US-08 Socket ).
- On-Delay version
- One delayed contact (SPDT Relay) + One instantaneous contact (SPDT Relay) Output
- Large and easy to read dial shows decimal points
- Two Leds provide status indication for ON-OFF operations
Model number
Contact form
Delay time

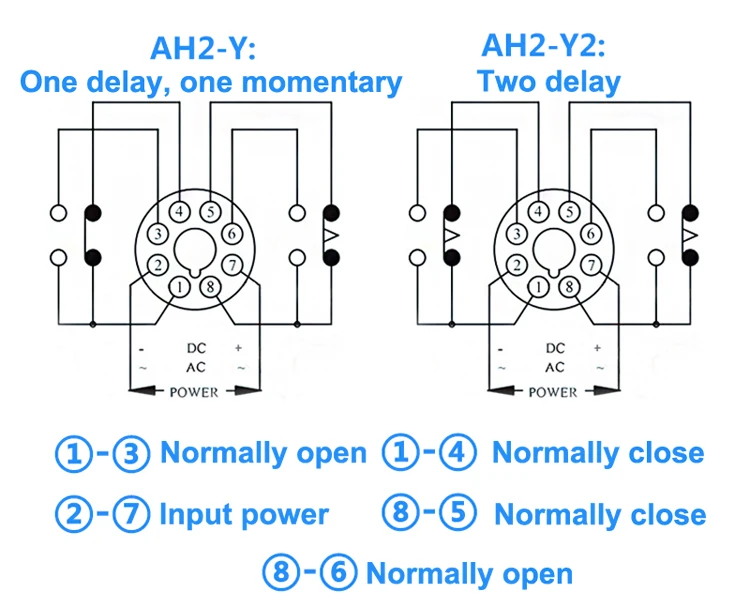

AH2-N
On-delay SPDT with SPDT instantaneous
1s/3s/6s/10s/30s/60s/3m/6m/30m/60m
AH2-Y
On-delay SPDT with SPDT instantaneous
1s/3s/6s/10s/30s/60s/3m/6m/30m/60m
AH2-Y2
On-delay DPDT
1s/3s/6s/10s/30s/60s/3m/6m/30m/60m
Model
AH2-Y
Contact capacity
AC 250V 3A
Contact
one delay contacts

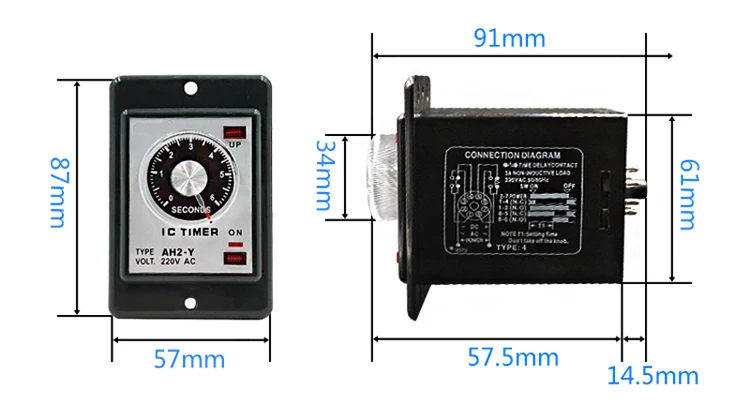

Dimension
87*57*91cm
Installation
By Pane
Electrical life
≥10^5
voltage
AC 24V/ 220V/ 380V; DC 24V
Operation type
Cycle delay, power On delay
Delay range
SEC: 1,3,6,12,30,60
MIN: 3,6,12,30,60
HR: 3,6,12,24
product time relay ah2 y power on delay 220vac dc24v ac380v-3
product time relay ah2 y power on delay 220vac dc24v ac380v-4
product time relay ah2 y power on delay 220vac dc24v ac380v-5
product time relay ah2 y power on delay 220vac dc24v ac380v-6
