product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-0

H3BA-N8

Home >  Products >  Time relay >  H3BA-N8

Products

The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices
The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices

The manufacturer directly supplies two sets of high quality H3BA-8 ultra time relay pointer type delay devices

Get a Quote
  • Product Description

Product Description

Products Description
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-1
The H3BA series Multi-range analogue timer is a time-limited type of timer. It have a variety of time
setting ranges and voltages you can choose, it mainly used for equipment control.

Description:
- Multi-range analogue timer
- Time setting range of 0.5s to 100h
- Handles a wide range of applications through eight operating modes.

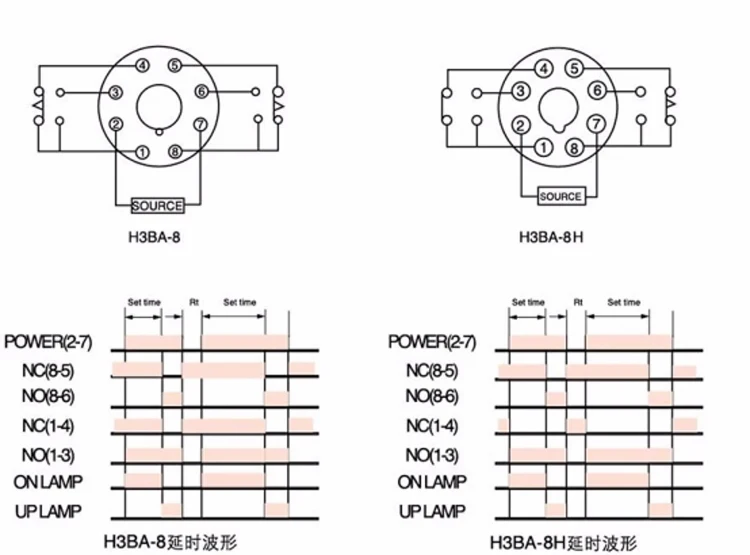

- 2 modes selectable via slide switch: Mode A (2C) for DPDT time-limiting
output contacts and Mode B (1A1C) for SPDT instantaneous and time-limiting
output contacts - Big and easy to read dial shows decimal points
- Timing LED Indicates Output Relay Status
Type
Mounting and Socket
Output contact
Time range
H3BA
Surface(N): PF113A(E)
Flush(-Y): US-11
2C

0.5Seconds-100Hours
H3BA-8
Surface(-N): P2CF08 PS08
Flush(-Y): US-08 P3G-08
H3BA-8H
1A1C
Product Type
H3BA
Operating voltage
24-240V DC/AC
DC(V):12,24,48
AC(V):24,50,110,220
Allowable operating voltage range
85~110% of rated operating voltage
Rated frequency
50/60Hz
Indicator operating
Time operating flicker
Contact rating
250VAC 5A (resistive load)
Life
Mechanical 5×107times
Electrical 1×105times
Accuracy
Repeat error ±1.0%max
Setting error ±5.0%max
Voltage error ±1.0%max
Temperature error ±2.0%max
Reset time
Max 0.5sec
Insulation resistance
100MΩ(DC 500V)min
Dielectric strength
1500VAC
Power consumption
100-240VAC:1VA / 12VDC,24-240VDC:1.5W
Ambient temperature
-10℃~+55℃
Ambient humidity
48~85%RH
Weight
100g

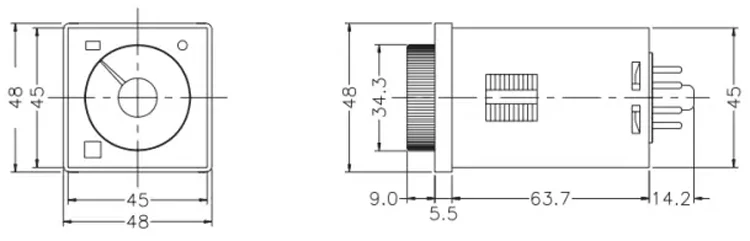

Dimensions
48H×48W×93.5D
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-2
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-3
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-4
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-5
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-6
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-7
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-8
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-9
More Products
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-10
About Us
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-11
Certificate
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-12
Product Process
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-13
Transportation
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-14
FAQ
product the manufacturer directly supplies two sets of high quality h3ba 8 ultra time relay pointer type delay devices375-15
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7 days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
