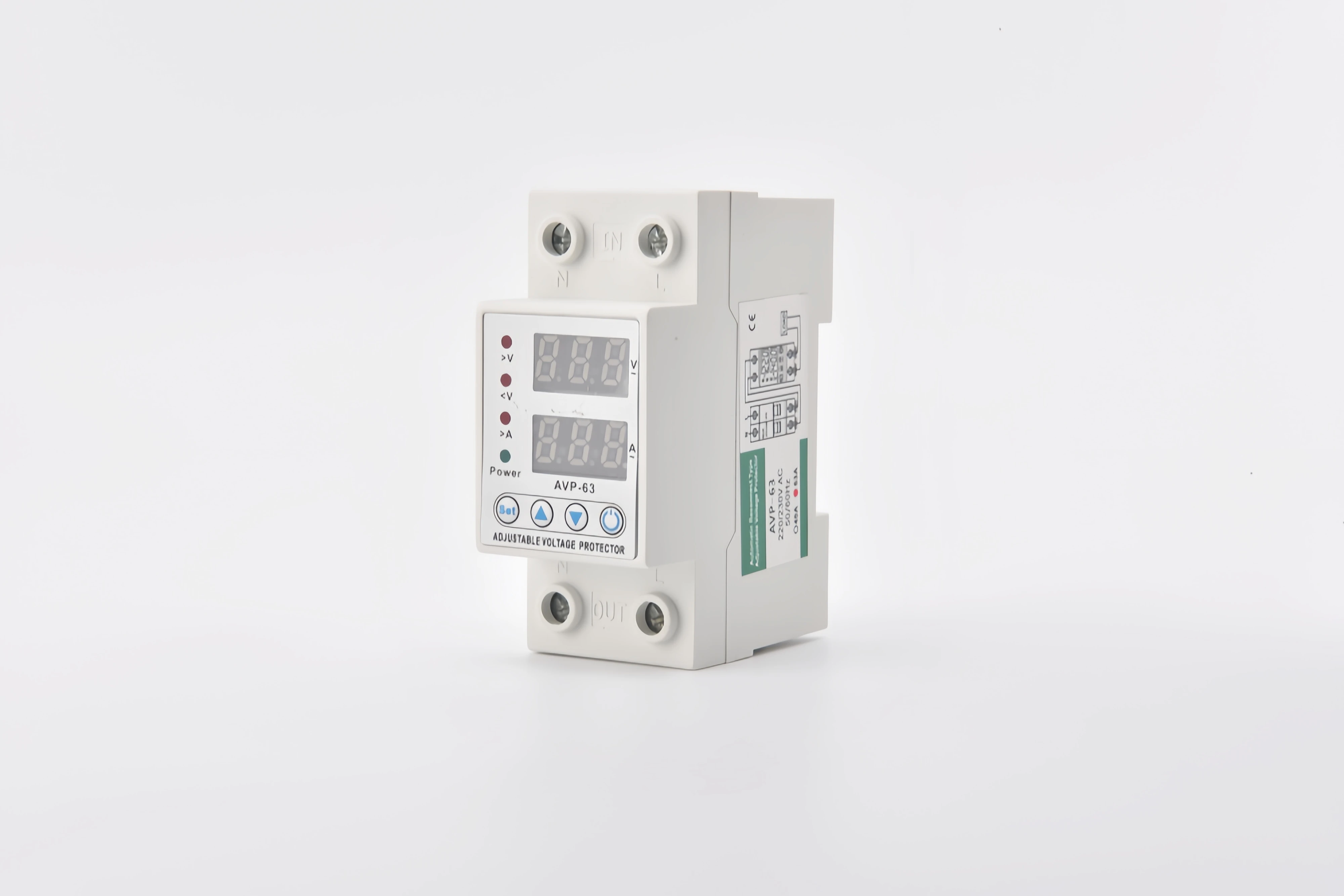

Model number |

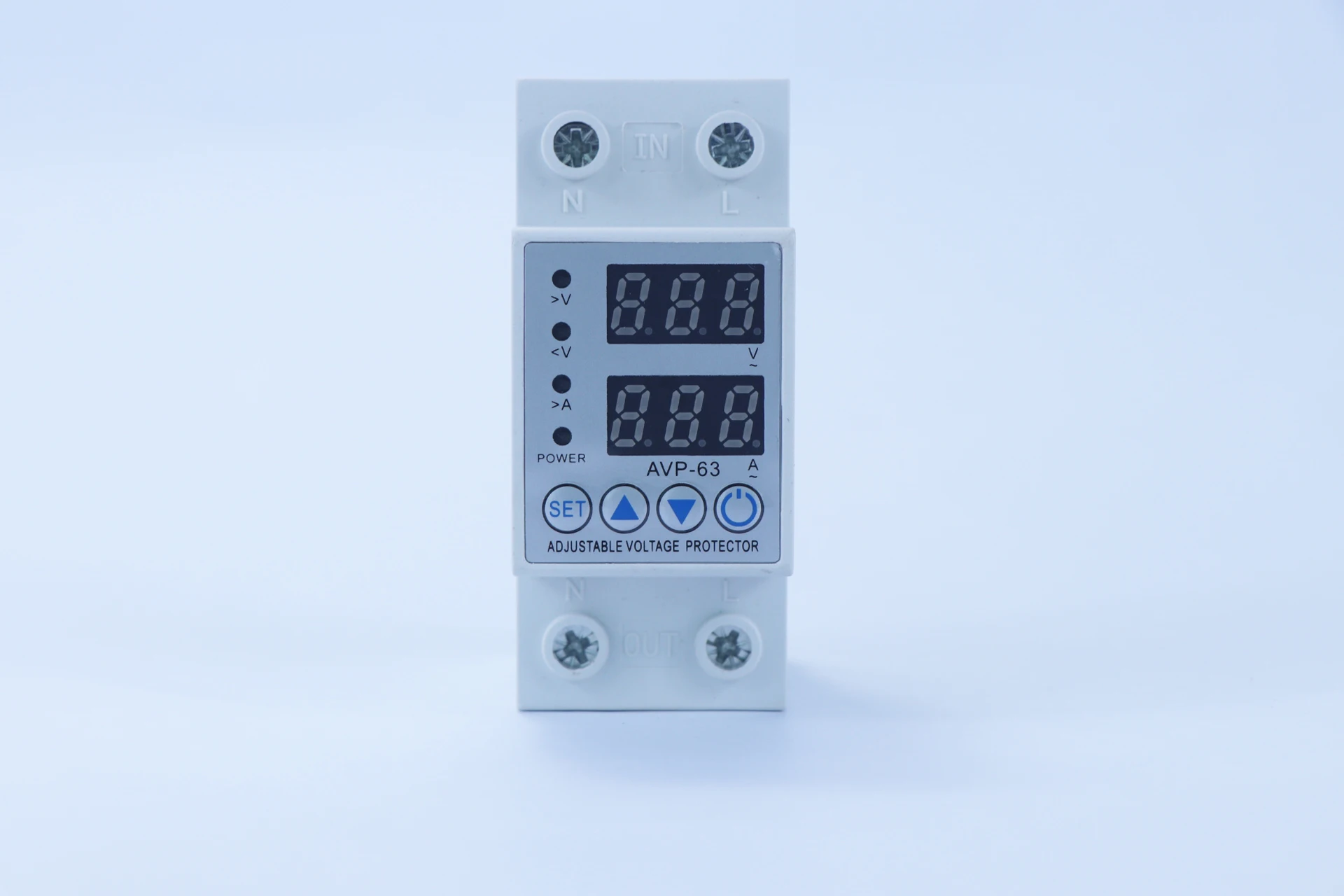

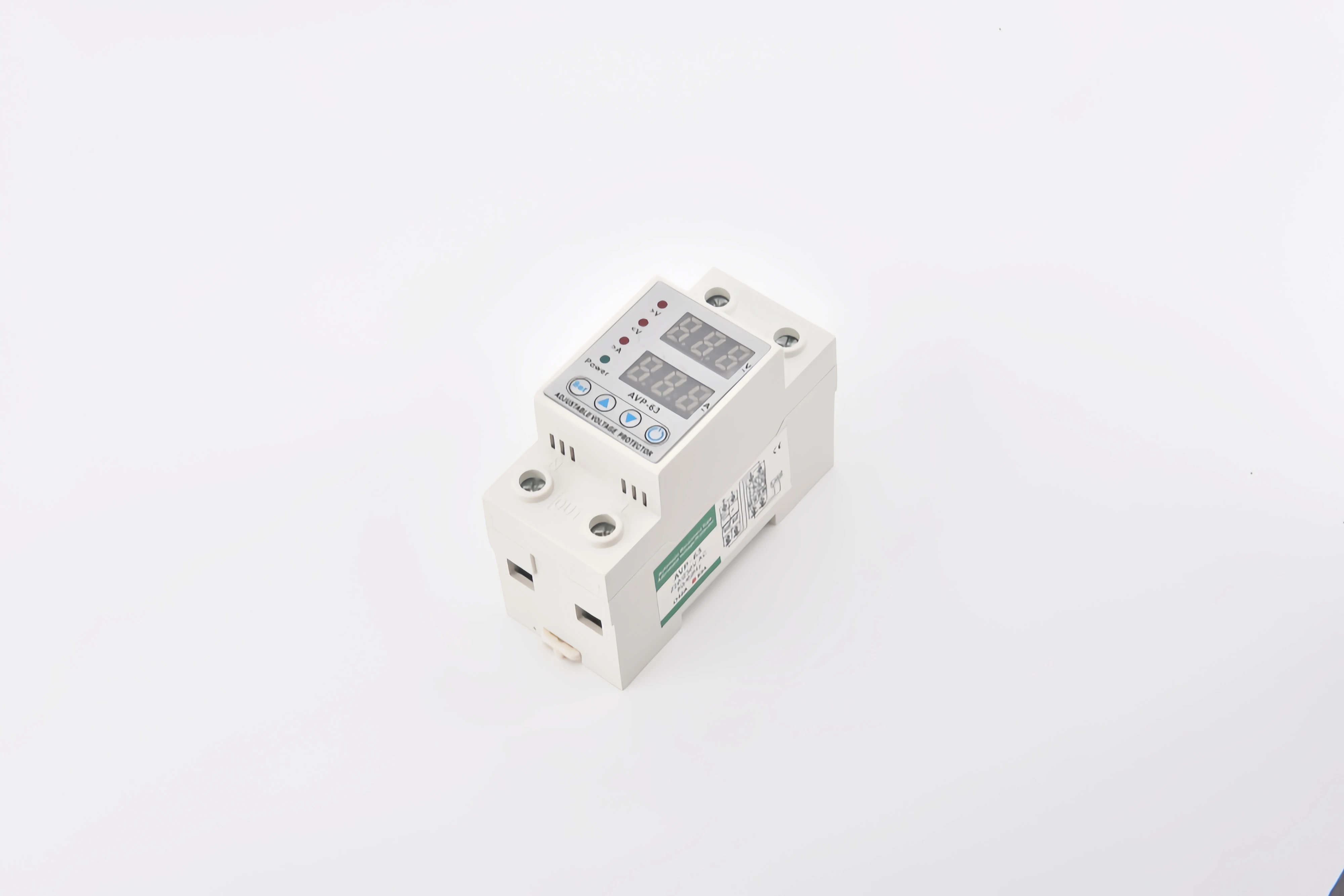

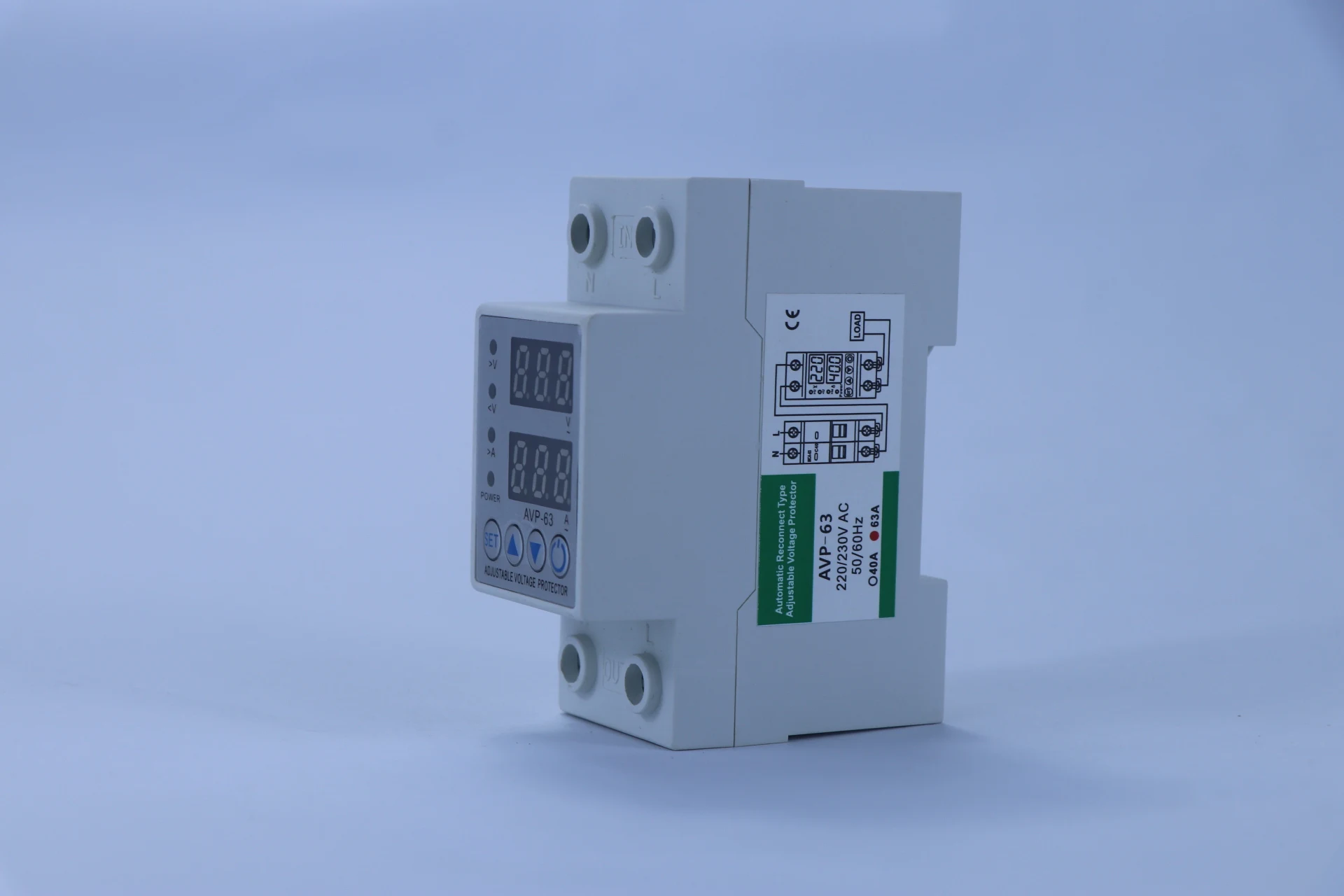

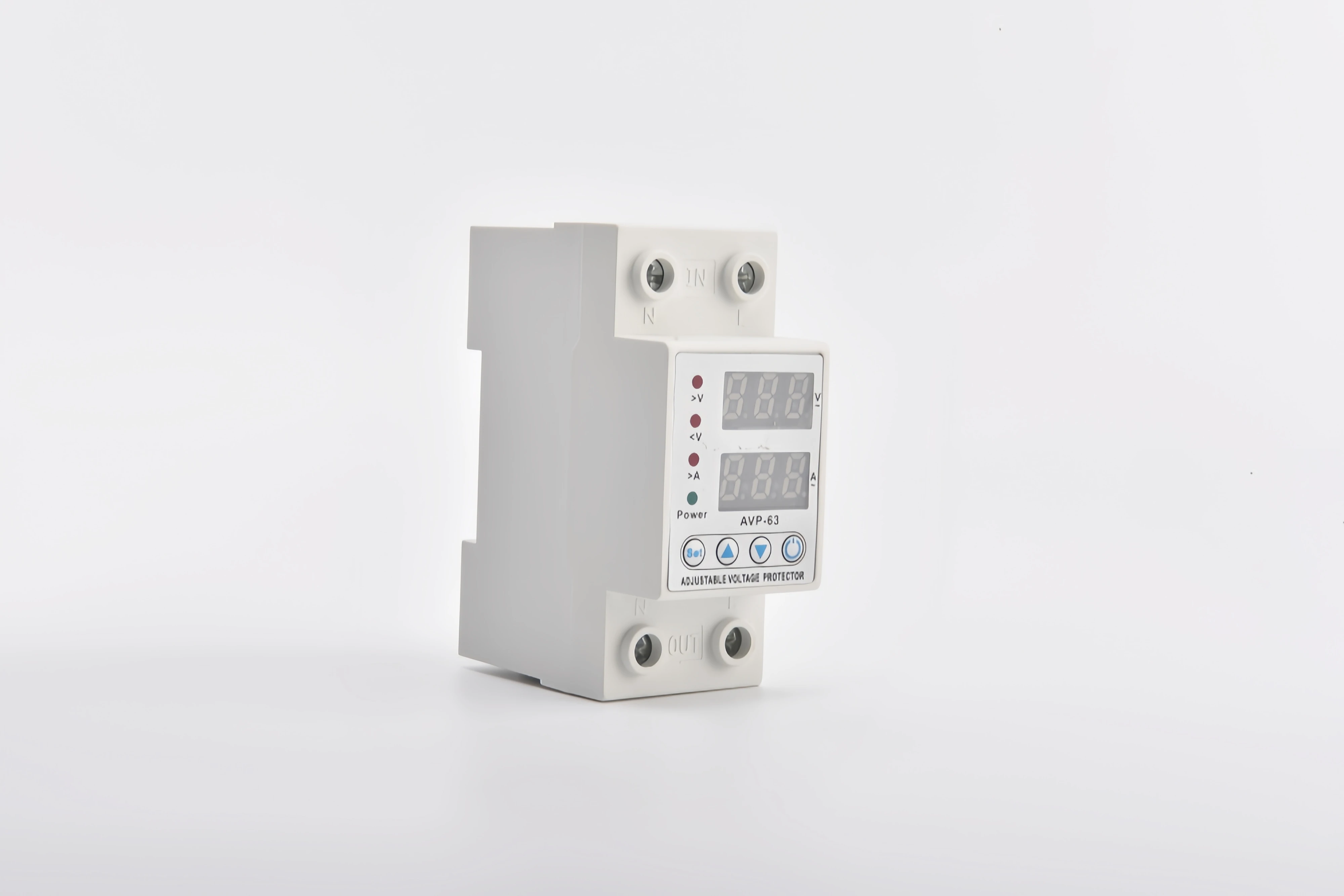

AVP-63/AVP-40 |
Rated voltage |
220VAC 50HZ or 120VAC 50HZ |
Rated current |
1A-80A adjustable（default 40A or 63A or 80A） |
Over-voltage action cut-off value |
240V-300V adjustable（default 270V for 220V rated voltage） 140-200V adjustable（default 170V for 120V rated voltage |
Under-voltge action cut-off value |
140-210V adjustable（default 170V for 120V rated voltage） 70-100V adjustable（default 80V for 120V rated voltage |
Overcurrent action cut -off value |
63A 1A-63A can be set (default 40A) 40A: 1A-40A can be set (default 40A) |
Boot delay time |
1s-300s adjustable(defauIt 5s) |
Own Power consumption |
≤2W |
Electrical mechanical life |
≥100,000 times |
Working environment |
Temperature: -5⁰C～+40⁰C Humidity:＜90% Altitude：≤2000 m |
