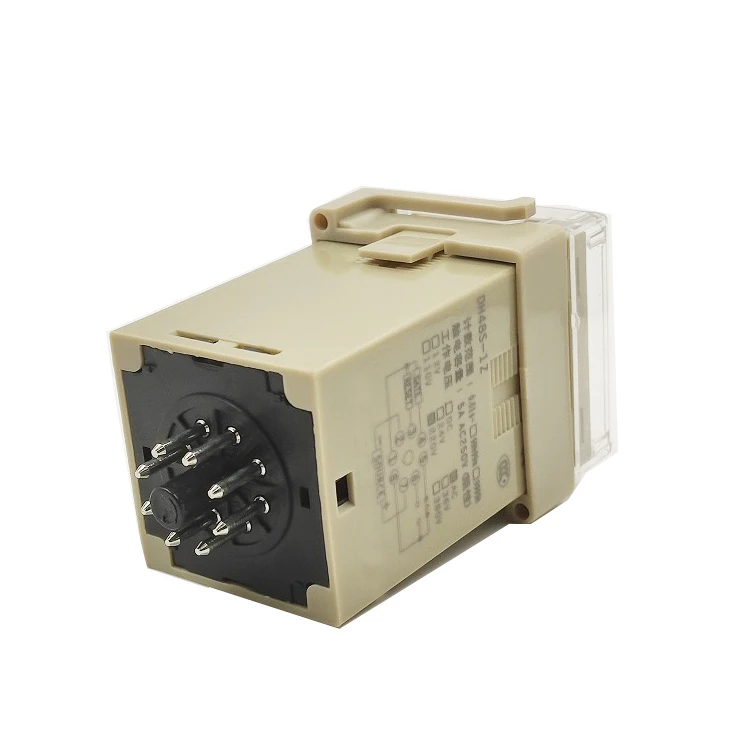

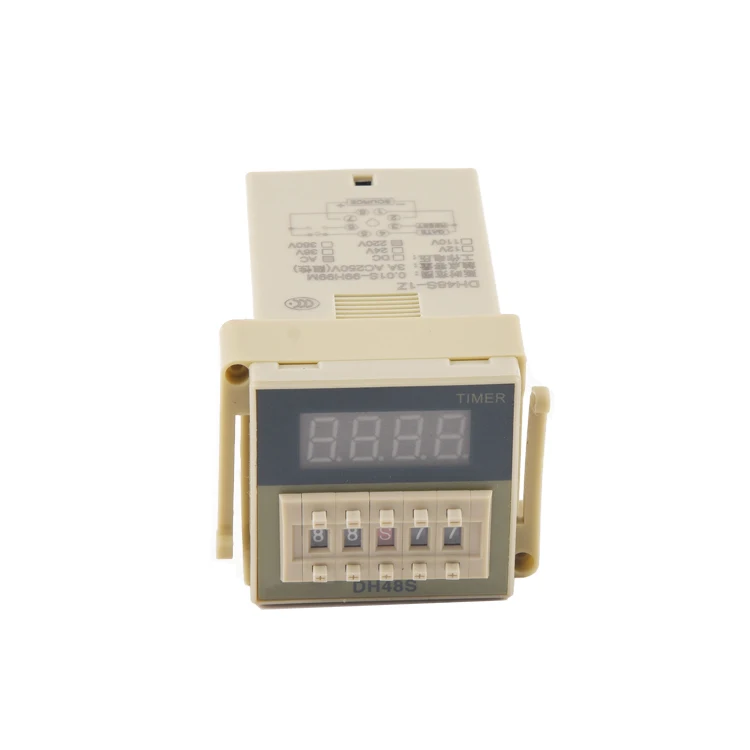

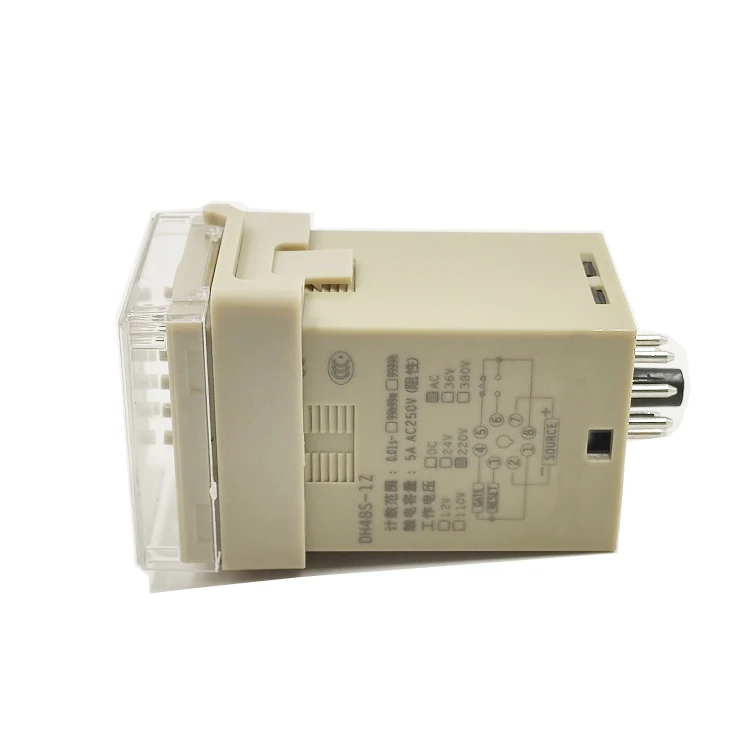

Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g
Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g

Professional Manufacturers Provide Programmable DH48S Time Relays with DC12V Sockets Miniature PROTECTIVE Sealed 3 Years 100g

Get a Quote
  • Product Description

Product Description

Products Description
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-1
Time relay is a very important component in the electrical control system. In many control
systems, it is necessary to use the time relay to achieve delay control. Time relay is an automatic control electrical appliance that uses the principle of electromagnetic or mechanical action to delay the closing or breaking of contacts. Its characteristic is that there is a delay from the time the attracting coil gets the signal to the action of the contact.
Power： 85-110%
Rated voltage: AC 110V/ 220V/ 380V
DC 12V/24V/36V
Delay control accuracy: ≤0.3%±0.05s
Contact Capacity: AC 220 5A (Resistive load)
DC 30 5A (Resistive load)
Mechanical life: ≥107 time
Electrical life: ≥105 time
Ambient temperature: -10℃~+50℃
Power consumption: ≤5W
Altitude: <2000m
Model
DH48S-1Z
Contact capacity
AC 250V 3A
Contact
one delay contacts
Dimension
48*48*98cm
Installation
By Panel, by 35mm rail
voltage
AC 110V/ 220V/ 380V; DC 12V/24V/36V
Operation type
power On delay

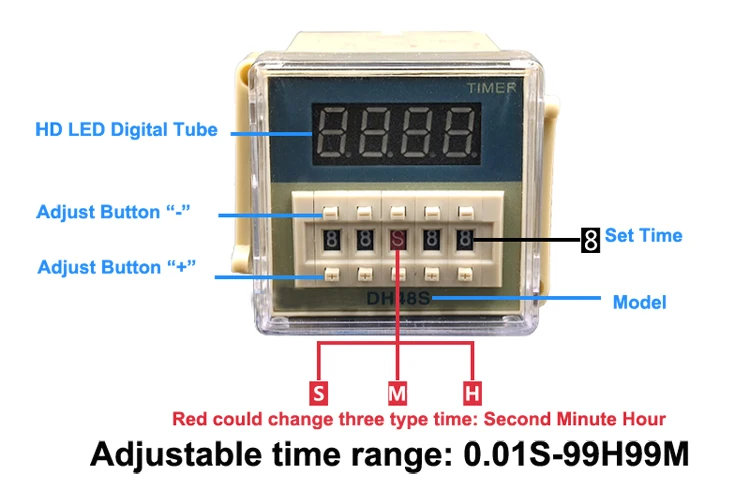

Delay range
0.1s-99H; 0.01S-99H99M
Model Number
DH48S-2Z
Contact Resistive Load
AC 250V 3A
Rated Voltage
DC 24V
Contact Type
DPDT，2NO 2NC
Number of Terminals
8 Pins
Time Range
0.01s-99H99M
External Material
Plastic, Metal, Electric Parts
Fixing Hole Dia
3mm/0.12"
Mounted Hole Distance
33mm/ 1.3"

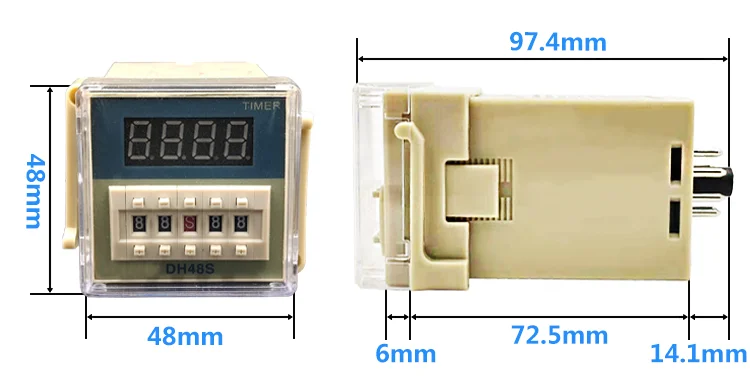

Total Size
110 x 60 x 50mm / 4.3" x 2.4" x 2"(L*W*H)
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-2
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-3
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-4
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-5
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-6
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-7
More Products
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-8
About Us
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-9
Certificate
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-10
Product Process
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-11
Transportation
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-12
FAQ
product professional manufacturers provide programmable dh48s time relays with dc12v sockets miniature protective sealed 3 years 100g-13
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7 days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
