H3BA-N8

Home >  Products >  Time relay >  H3BA-N8

Products

New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay
New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay

New Arrivals Wholesale High Quality Fan Relay Off Time 110v switch relay Time-Delay Relay

Get a Quote
  • Product Description

Product Description

Products Description
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-1

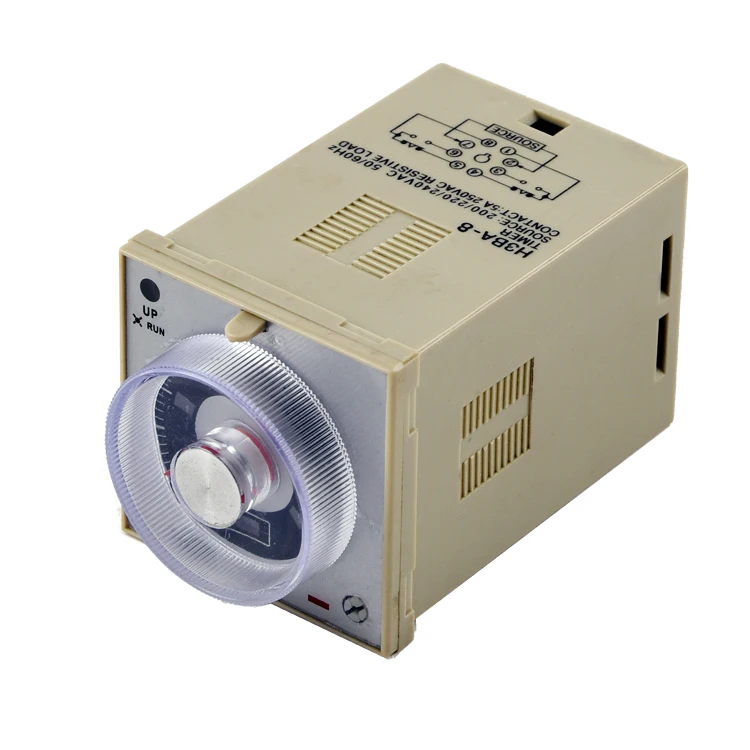

The H3BA series Multi-range analogue timer is a time-limited type of timer. It have a variety of time
setting ranges and voltages you can choose, it mainly used for equipment control.

Description:
- Multi-range analogue timer
- Time setting range of 0.5s to 100h
- Handles a wide range of applications through eight operating modes.
- 2 modes selectable via slide switch: Mode A (2C) for DPDT time-limiting
output contacts and Mode B (1A1C) for SPDT instantaneous and time-limiting
output contacts - Big and easy to read dial shows decimal points
- Timing LED Indicates Output Relay Status
Type
Mounting and Socket
Output contact
Time range
H3BA
Surface(N): PF113A(E)
Flush(-Y): US-11
2C

0.5Seconds-100Hours
H3BA-8
Surface(-N): P2CF08 PS08
Flush(-Y): US-08 P3G-08
H3BA-8H
1A1C
Product Type
H3BA
Operating voltage
24-240V DC/AC
DC(V):12,24,48
AC(V):24,50,110,220
Allowable operating voltage range
85~110% of rated operating voltage
Rated frequency
50/60Hz
Indicator operating
Time operating flicker
Contact rating
250VAC 5A (resistive load)
Life
Mechanical 5×107times
Electrical 1×105times
Accuracy
Repeat error ±1.0%max
Setting error ±5.0%max
Voltage error ±1.0%max
Temperature error ±2.0%max
Reset time
Max 0.5sec
Insulation resistance
100MΩ(DC 500V)min
Dielectric strength
1500VAC
Power consumption
100-240VAC:1VA / 12VDC,24-240VDC:1.5W
Ambient temperature
-10℃~+55℃
Ambient humidity
48~85%RH
Weight
100g

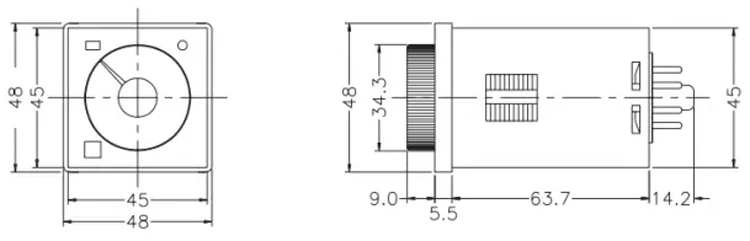

Dimensions
48H×48W×93.5D
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-2
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-3
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-4
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-5
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-6
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-7
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-8
product new arrivals wholesale high quality fan relay off time 110v switch relay time delay relay-9
