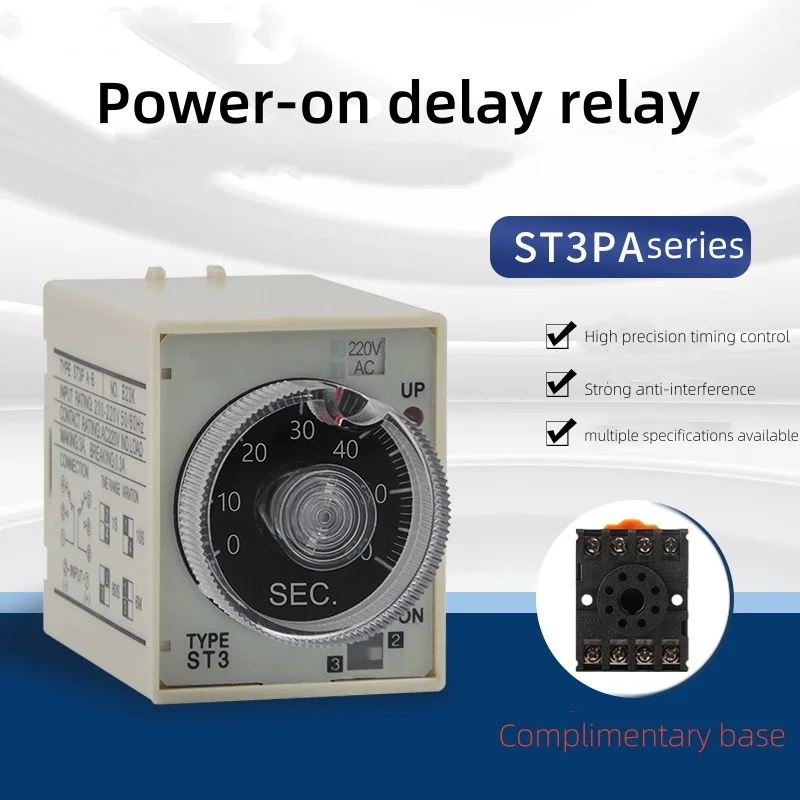

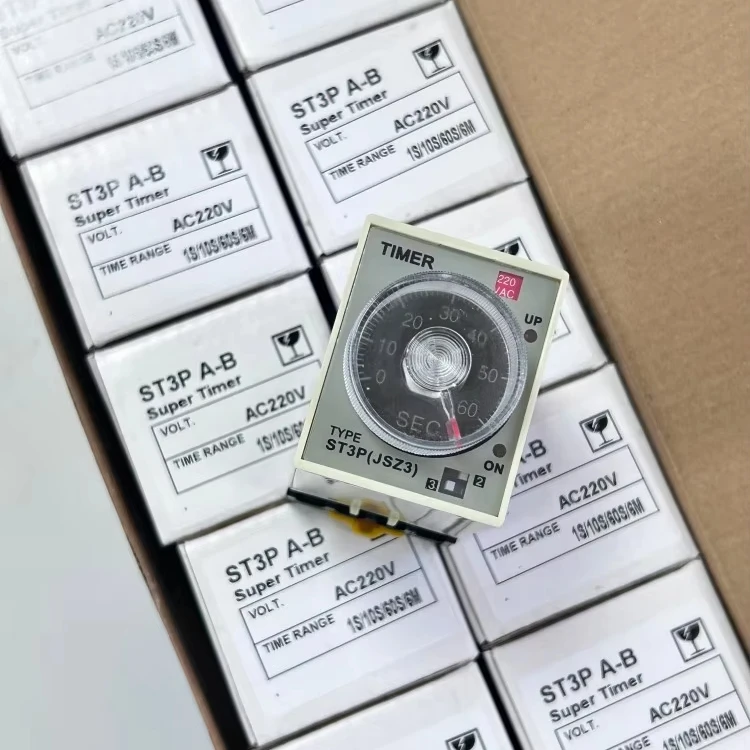

Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V
Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V

Manufacturer's Direct Supply of ST3PA-B Time Relay ST3PA Series 220VAC Timer Delay 1/10s/60s/6min AC 220V 380V

Get a Quote
  • Product Description

Product Description

Products Description
6min ac 220v 380v-1
Product feature:
1. Integrated type internal structure
2.Standard external structure
3.Adjusting set-up simplifying type
4. Multifunction model Multi type

Product advantages

1. Wide delay range, 4-segment delay range, high delay repetition accuracy 2. Power plants/metallurgical and petrochemical industries/urban construction and transportation are safer. 3. Good anti-interference performance and strong reliability. 4. Flame retardant shell, with longer service life.
Classification
Timer
Multi Range Timer
Model
ST2P
ST3P
Dimensions(mm)
50H×40W×57.5D
50 H×40.5W×57.5 D
Mounting & Socket
Surface(-n)
PF083A(E)
PF-083A(E)
Flush(-y)
US-08 P3G-08
US-08 P3G-08

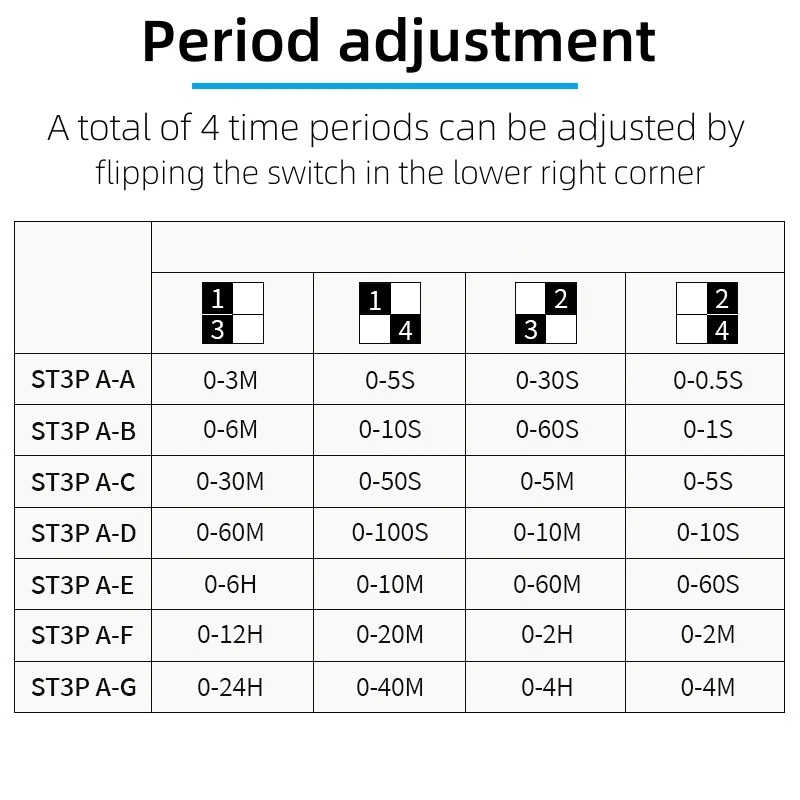

Full Timing Range
SEC:1,3,6,10,12,30,60
MIN:3,6,10,12,30,60
HR:3,6,10,12,30
A:0.05-0.5s/5s/30s/3min
B:0.1-1s/10s/60s/6min
C:0.5s/5s/50s/5min/30min D:1-10s/100s/10min/60min
E:5-1min/10/60min/6h F:0.25-2min/20min/2h/12h
G:0.5-4min/40min/4h/24h
Rated Voltage
AC (V):12,24,110,220
50/60Hz
DC(V):12-24(50/60Hz)
24 to 240 VAC/DC
AC(V)110V,220V
DC(V)12V,24V
Indicator Operating
ON-UP Operating
ON-UP Operating
O/P
Contact
Model
ST2P-E
ST3PA
ST3PC
Time Limit 1C
5A
5A
Time Limit 2C
5A
Instantenous 1C
5A
5A
Life
Mechanical
5×107times
5×107times
Electrical
105times
105times
Accuracy
Repeat Error
±1%max
±1%max
Setting Error
±10%max
±10%max
Voltage Error
±1%max
±1%max
Temp. Error
±2%max
±2%max
Reset Time
0.5 sec max
0.5 sec max
6min ac 220v 380v-2
6min ac 220v 380v-3
6min ac 220v 380v-4
6min ac 220v 380v-5
6min ac 220v 380v-6
6min ac 220v 380v-7
