60hz 8pin 2no 2nc-0

H3BA-N8

Home >  Products >  Time relay >  H3BA-N8

Products

H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC
H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC

H3BA-N8H Time Relay 1.2s to 300h 50/60Hz 8PIN 2NO 2NC

Get a Quote
  • Product Description

Product Description

Products Description
60hz 8pin 2no 2nc-1
Type
H3BA(ST4P)

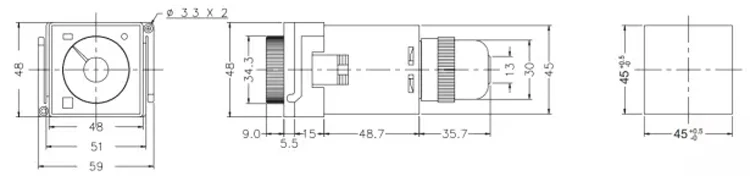

Dimensions
48HX48WX93.5D
Mounting
Surface (-N)
PF113A(E)
PS-08
Socket
Flush(-Y)
US-11
US-08 P3G-08
Full timing range
0.5SEC~100HRS
Rated voltage
24 to 240V DC/AC
DC(V):12,24,48
AC(V):24,50,110,220
Indicator operation
Time operation flicker
O/P
Contact
Model
H3BA
H3BA-8
H3BA-8H
Time limit 1c
5A
Time limit 2c
5A
5A
Instantaneous 1c
5A
Service life
Mechanical
5X10000000 times
Electrical
100000 times
Accuracy
Repeat error
±2% max
Setting error
±5% max
Voltage error
±5% max
Temperature error
±2% max
Reset time
0.5 sec max
Consumed power
100~240VAC: 10VA 12VDC,
24~240VDC: 1.5W
Ambient temperature
-10~+55
Ambient humidity
35-85% RH
Weight
100g
The H3BA series Multi-range analogue timer is a time-limited type of timer. It have a variety of time
setting ranges and voltages you can choose, it mainly used for equipment control.

Description
- Multi-range analogue timer
- Time setting range of 0.5s to 100h
- Handles a wide range of applications through eight operating modes.
- 2 modes selectable via slide switch: Mode A (2C) for DPDT time-limiting output contacts and Mode B (1A1C) for SPDT instantaneous
and time-limiting output contacts - Big and easy to read dial shows decimal points
- Timing LED Indicates Output Relay Status
60hz 8pin 2no 2nc-2
60hz 8pin 2no 2nc-3
60hz 8pin 2no 2nc-4
60hz 8pin 2no 2nc-5
60hz 8pin 2no 2nc-6
60hz 8pin 2no 2nc-7
60hz 8pin 2no 2nc-8
60hz 8pin 2no 2nc-9
