Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay
Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay

Factory Supply Wholesale High Quality Durable 12V Micro Automotive Time Relay

Get a Quote
  • Product Description

Product Description

Products Description
product factory supply wholesale high quality durable 12v micro automotive time relay-1
Product Description
Multi-range digital timer
Easy-To-Read High Intensity red LED Display
Crystal oscillator for extreme accuracy
7-segment-display for clear display
Pushwheel switch for accurate setting
Available on Count Up model or Count Down model
LED Display Indicator for Power and running time
Type
Output contact
Time range
AS-2B
1A1C
Second:9.9S/99S Minute:9.9M/99M Hour:9.9H/99H
ASY-3B
ASY-2D
2C
Second:9S/99S/99.9S/999S Minute:99.9M/999M Hour:99.9H/999H
ASY-3D
imensions
88H×58W×68D
Mounting & Socket
Flush(-Y) US-08 P3G-08
Full timing range
SEC: 9.99, 999
MIN: 99.9, 999
HR: 99.9, 999
Rated voltage
DC(V):12 24
AC(V):12 24 110 220 240 380 50/60Hz
Display
LED
Contact O/P
Time limit 1C Instantaneous 1C 5A Resistive load.
Life
Mechanical 5×106times
Electrical 1×105times
Accuracy
Repeat error ±0.5%max
Setting error 0
Voltage error ±0.05 sec
Temp.error ±0.05 sec
Reset time
0.3sec max
Insulation resistance
100MΩ(DC 500V)min
Dielectric strength
1500VAC
Consrmed power
3VA
Ambient temperature
-10℃~+55℃
Ambient humidity
48~85%RH
Weight
230g

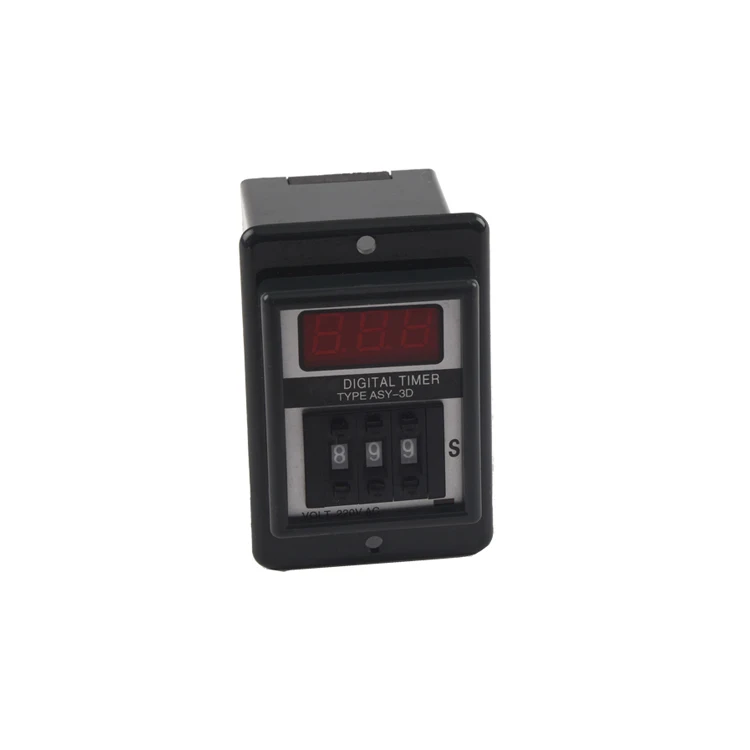

product factory supply wholesale high quality durable 12v micro automotive time relay-2

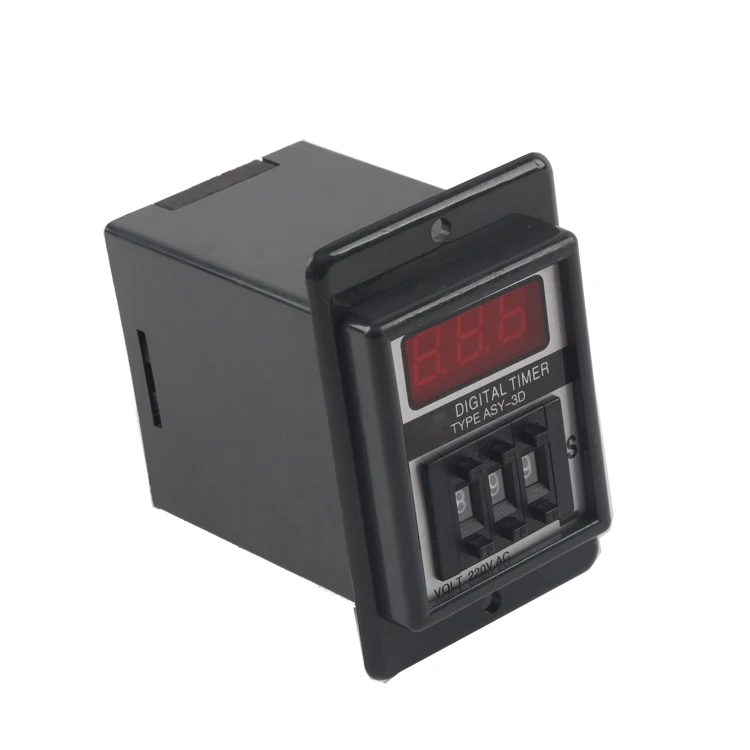

product factory supply wholesale high quality durable 12v micro automotive time relay-3

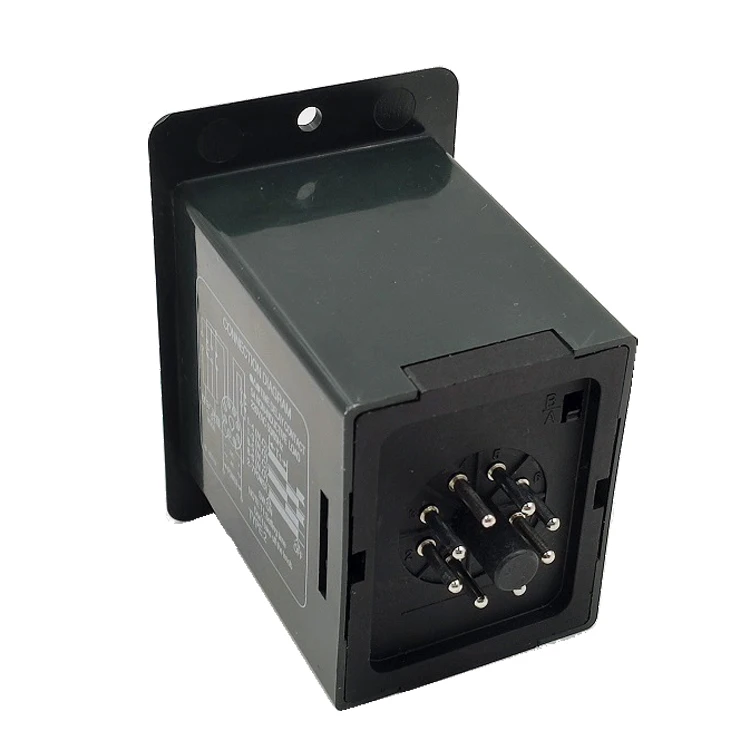

product factory supply wholesale high quality durable 12v micro automotive time relay-4

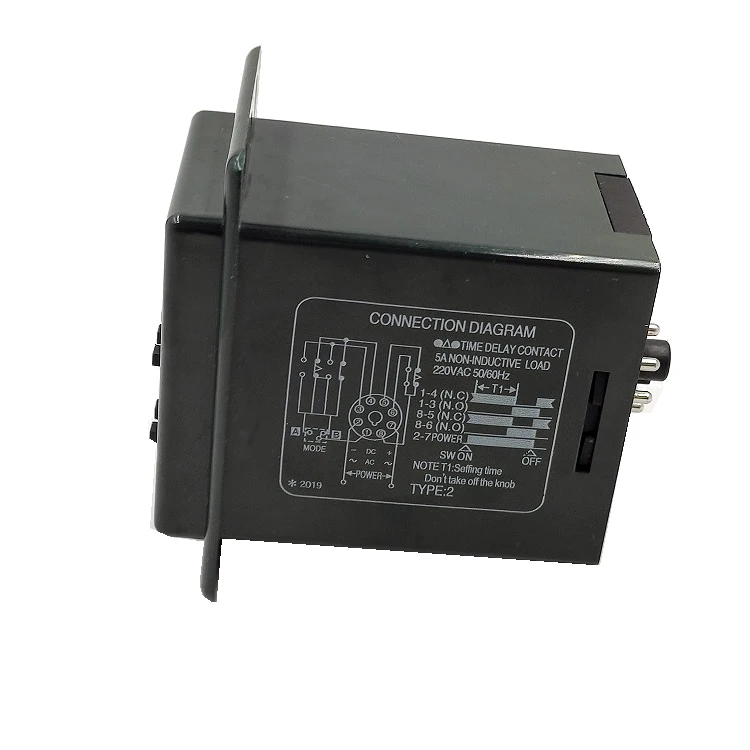

product factory supply wholesale high quality durable 12v micro automotive time relay-5
product factory supply wholesale high quality durable 12v micro automotive time relay-6

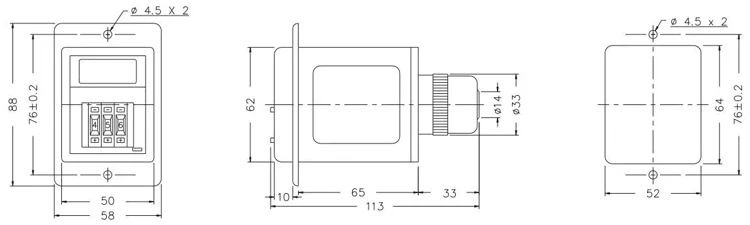

product factory supply wholesale high quality durable 12v micro automotive time relay-7

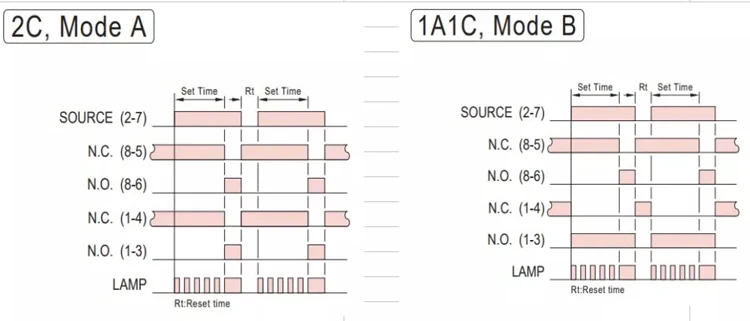

product factory supply wholesale high quality durable 12v micro automotive time relay-8

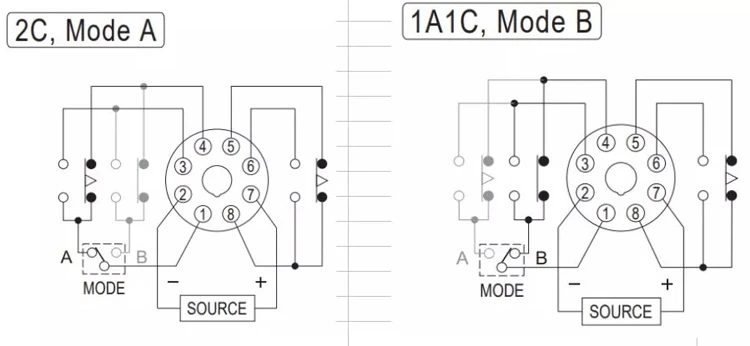

product factory supply wholesale high quality durable 12v micro automotive time relay-9
