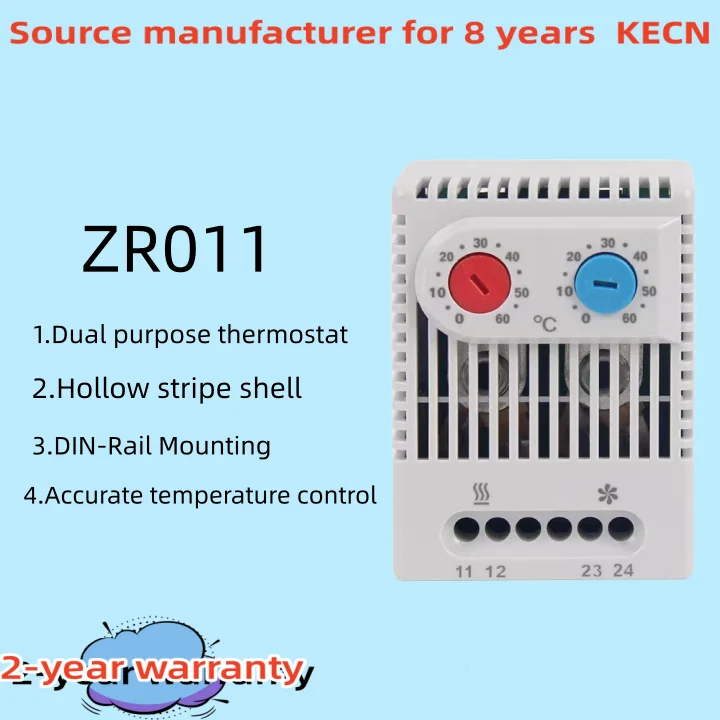

Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer
Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer

Dual purpose temperature regulator NC/NO ZRO011 with a 12 month warranty provided by the 8 years manufacturer

Brand:
KECN
Get a Quote
  • Product Description

Product Description

INTRODUCTION TO HIGH-QUALITY PRODUCTS

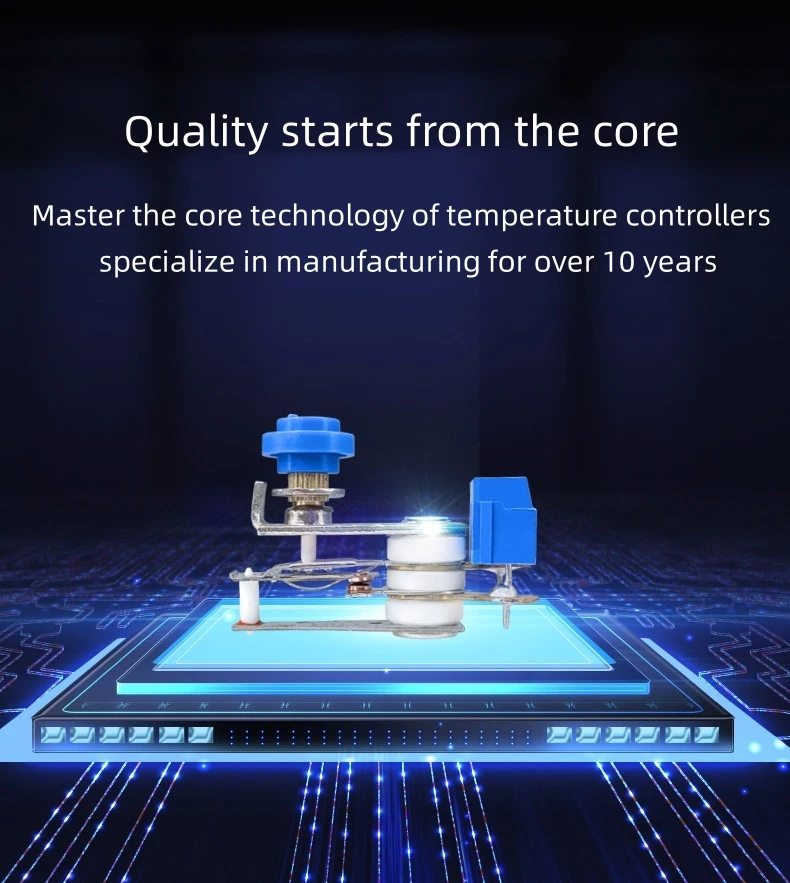

no zro011 with a 12 month warranty provided by the 8 years manufacturer-1

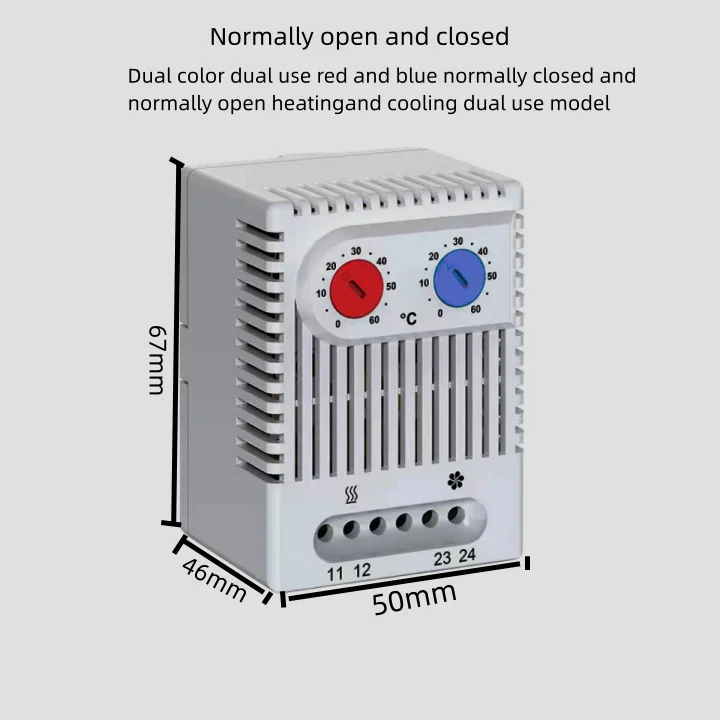

NO and NC in one casing，Separate adjustable temperatures，High switching capacity，Terminals easily accessibleClip fixing。Two thermostats in one casing:Thermostat (contact breaker, normally closed); for regulating heaters.Thermostat (contact maker, normally open); for regulating of filter fans and heat exchangers or switching signal devised whan temperature limit has been exceeded. Heaters and cooling equipment can be switched indepenndently from each other with a temperature offset as opposed to the usuai chang-over contacts
brand
KECN/Neutral/Customized Brand
Warranty period
1 years
Switch temperature difference
7K(±4K tolerance)
Sensor element
Thermostatic bimetal
Contact type
Snap-action contact
Contactresistance
<10m0
Service life
100,000 cycles
EMC
Acc. To EN 55014-1-2,EN61000-3-2,EN61000-3-3
Mounting
Clip for 35mm DIN rail,En50022
Casing
plastic according to UL94-0, light grey
Dimensions
67x50x46mm
Weight
Approx.90g
Fitting position
Variable
Operating/Storage temperature
-45 to +80℃(-49 to +176°F)
Protection type
IP20
Approvals
UL File No.E164102
Art_No.
Setting Range
Setting Range
01172.0-00
Contact breaker, normally closed
0to +60℃
Contact breaker, normally closed
0to +60℃
01172.0-01
Contact breaker, normally closed
+32 to +140°F
Contact breaker, normally closed
+32 to +140°F
01175.0-01
Contact breaker, normally closed
10 to +50℃
Contact breaker, normally closed
20to +80℃
01175.0-01
Contact breaker, normally closed
+14 to +122° F|
Contact breaker, normally closed
+68 to +176° F
01176.0-00*
Contact maker, normally open
0 to +60℃
Contact maker, normally open
0to +60℃
01176.0-00*
Contact maker, normally open
+32 to +140°F
Contact maker, normally open
+32 to +140°F
no zro011 with a 12 month warranty provided by the 8 years manufacturer-2

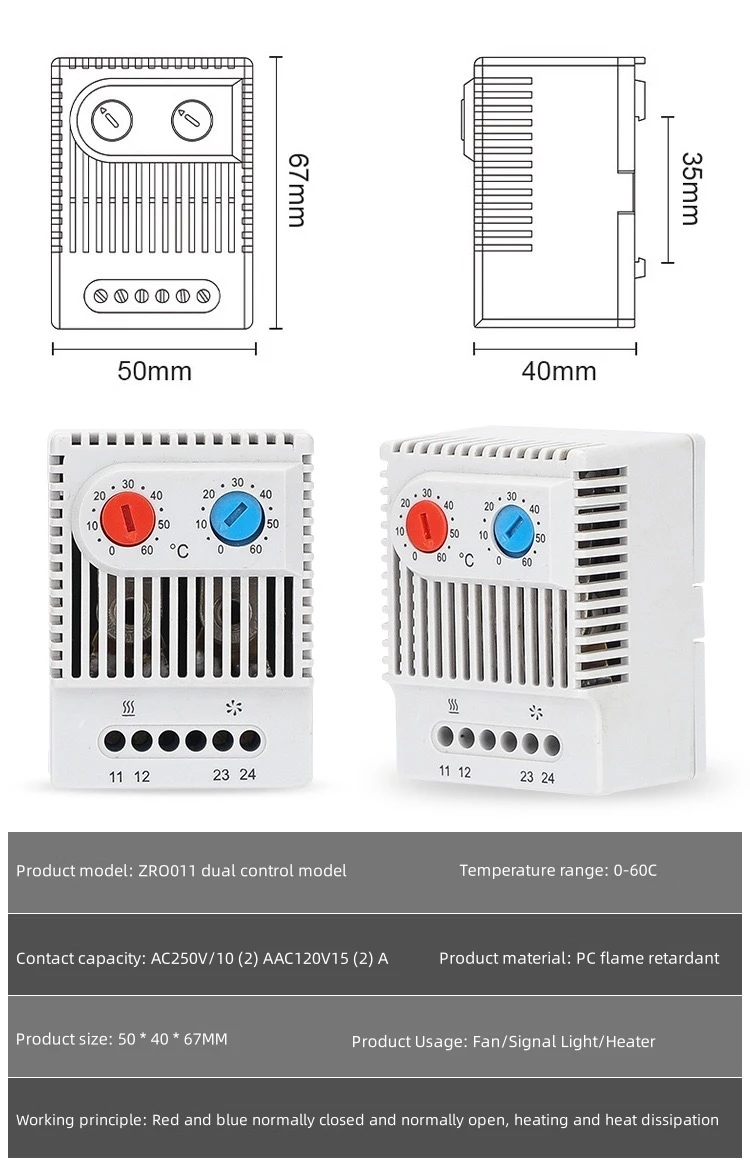

no zro011 with a 12 month warranty provided by the 8 years manufacturer-3
no zro011 with a 12 month warranty provided by the 8 years manufacturer-4

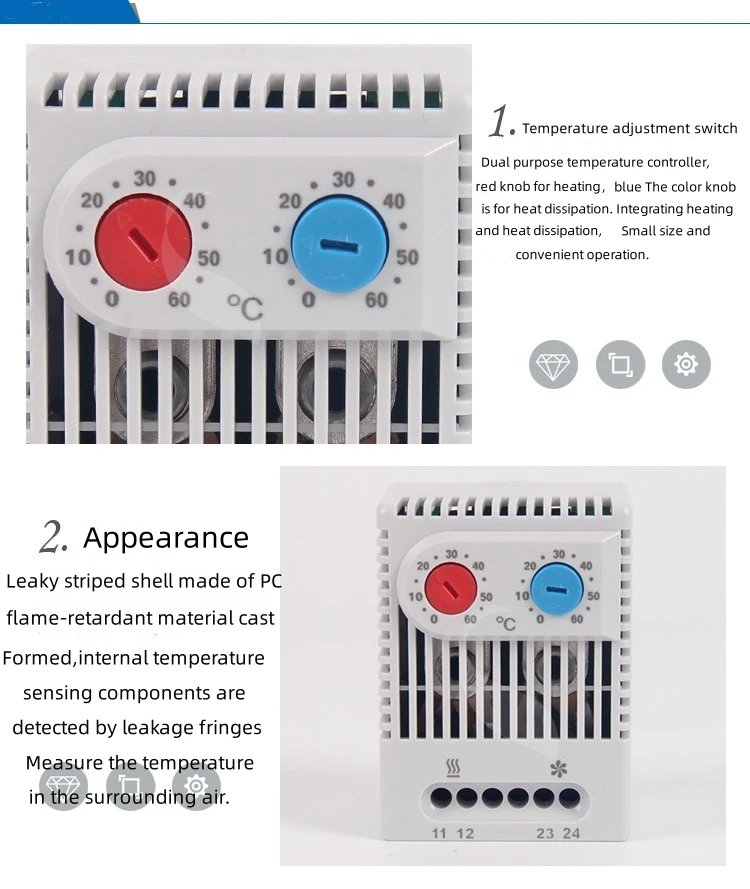

no zro011 with a 12 month warranty provided by the 8 years manufacturer-5

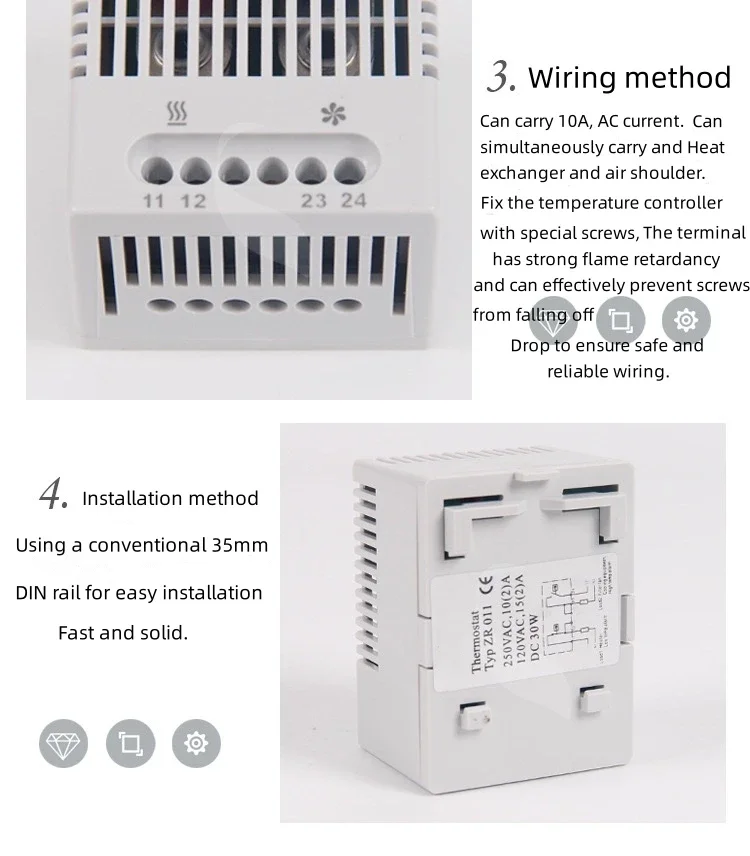

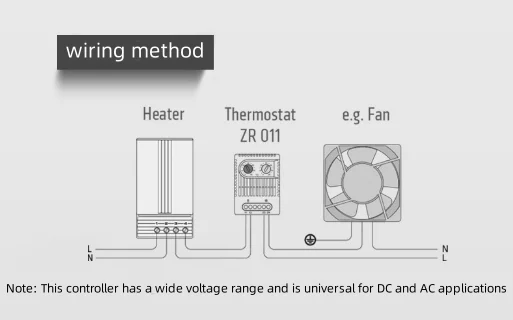

no zro011 with a 12 month warranty provided by the 8 years manufacturer-6
no zro011 with a 12 month warranty provided by the 8 years manufacturer-7

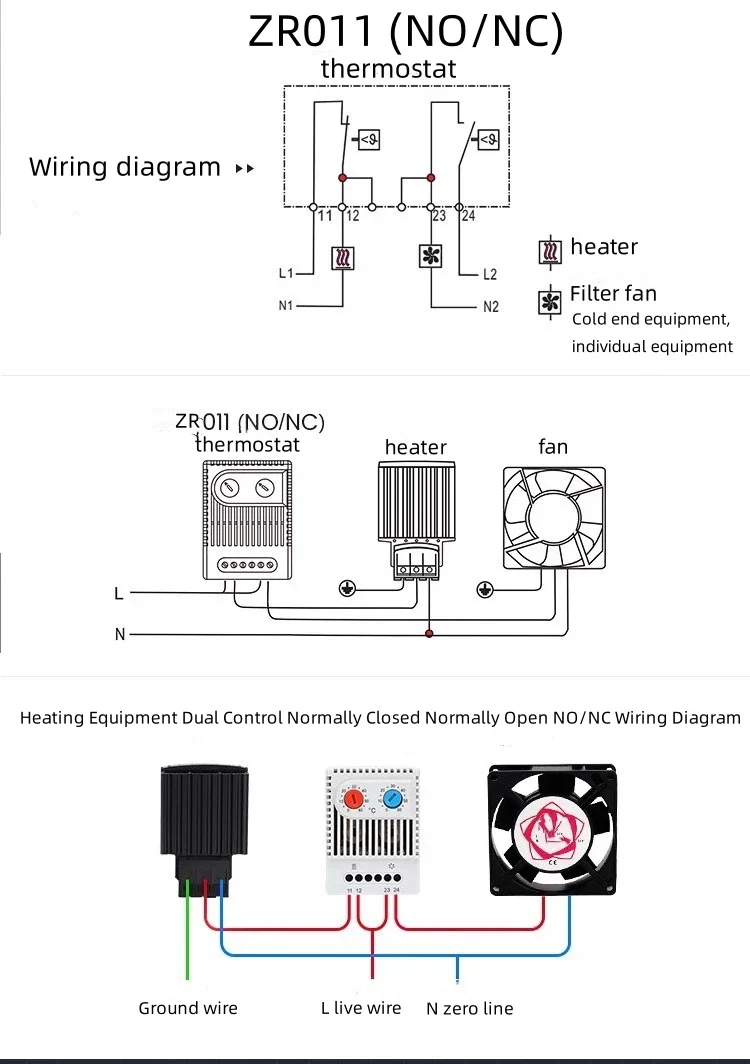

no zro011 with a 12 month warranty provided by the 8 years manufacturer-8

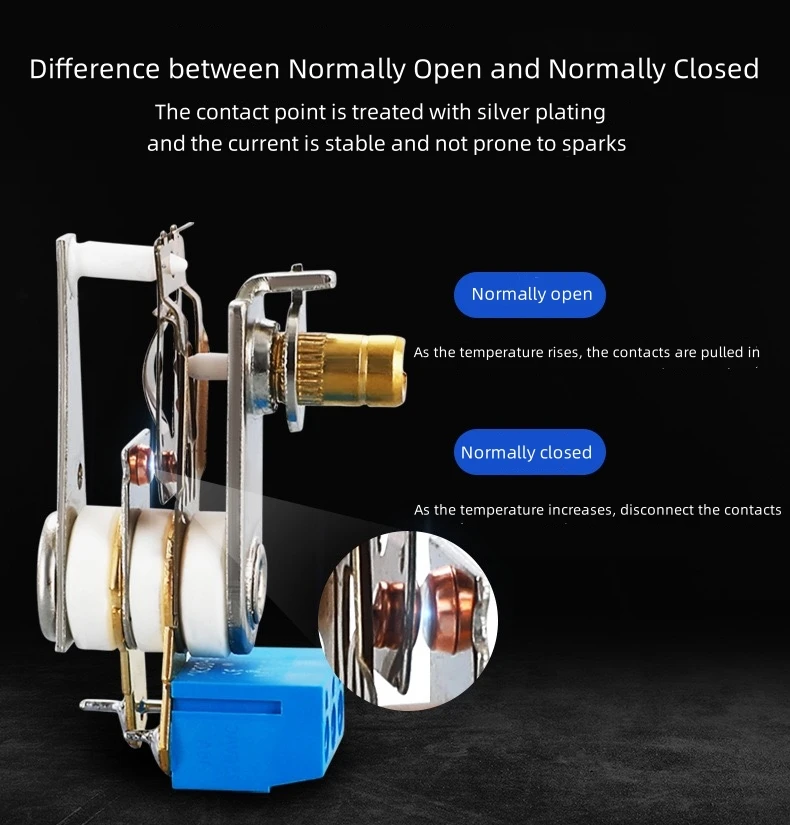

no zro011 with a 12 month warranty provided by the 8 years manufacturer-9
