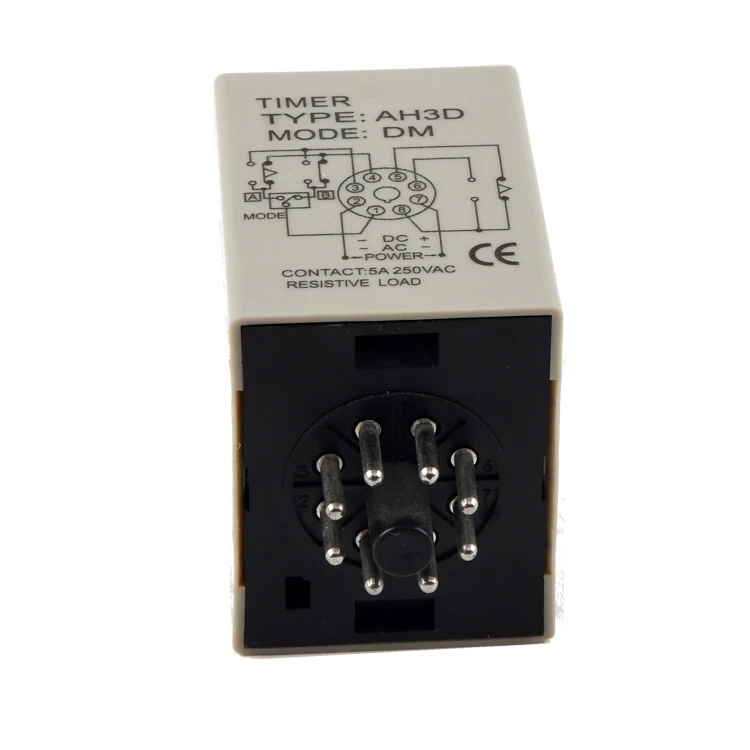

Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China
Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China

Digital Timer with 8 Pin Base, AH3D, 240 VAC Made in China

Get a Quote
  • Product Description

Product Description

Products Description
product digital timer with 8 pin base ah3d 240 vac made in china-1
Time relay is a very important component in the electrical control system. In many control systems, it is necessary to use the time relay to achieve delay control. Time relay is an automatic control electrical appliance that uses the principle of electromagnetic or mechanical action to delay the closing or breaking of contacts. Its characteristic is that there is a delay from the time the attracting coil gets the signal to the action of the contact.
1. TechnicalParameter
- Using CMOS IC lower power consumption high reliability and stability
- 15 different time ranges from 0.1 sec to 24 hrs available (Each time range the product is individually customized)
- Power Supply
Non universal voltage: AC(V) 12 ,24, 110, 220 ,240 50/60Hz , DC(V) 12, 24
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.
- Front panel mounted with a P3G-08/US-08 Socket ).
- On-Delay version
- One delayed contact (SPDT Relay) + One instantaneous contact (SPDT Relay) Output

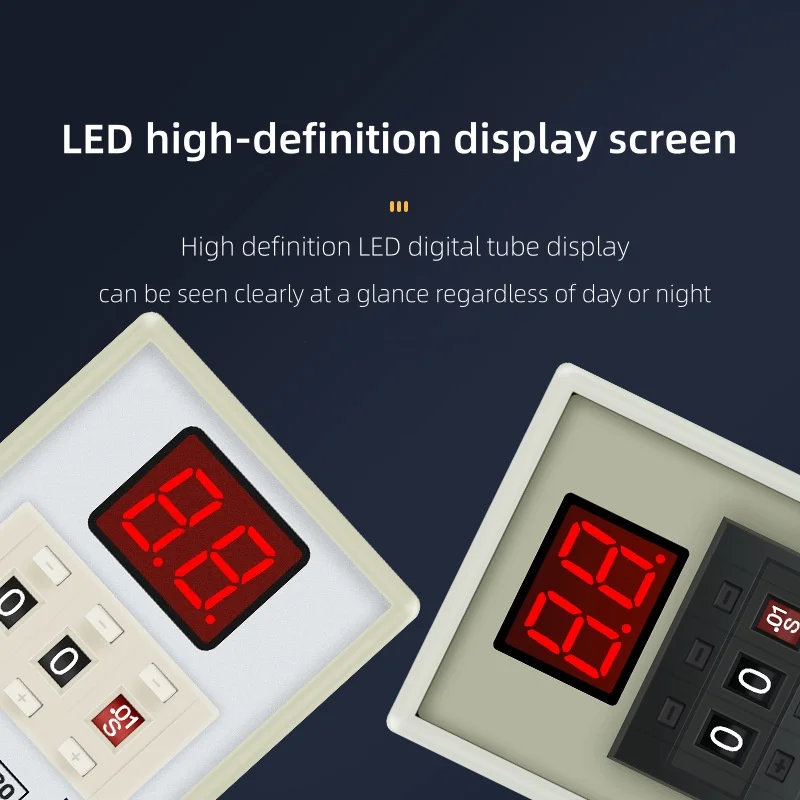

- Large and easy to read dial shows decimal points
- Two Leds provide status indication for ON-OFF operations
Model
AH3D-DM
Contact capacity
AC 250V 5A
Contact
Two delay contacts

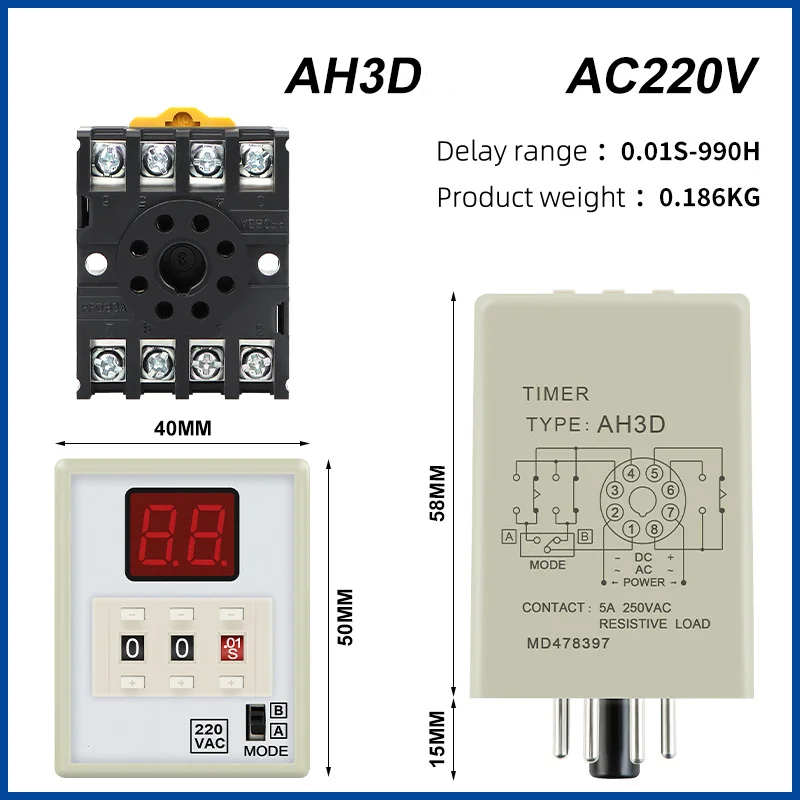

Dimension
50*40*72cm
Installation
With base or by 35mm rail
Electrical life
≥105
voltage
AC 24V/ 220V/ 380V; DC 24V
Operation type
power On delay
Delay range
SEC: 1,3,6,12,30,60
MIN: 3,6,12,30,60
HR: 3,6,12,24
Model number
AH3
Supply voltage
36, 48, 110, 220 or 380 Vac, 50/60 Hz; 24 Vdc
Tolerance
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption
3W max
Setting method
Knob
Indication method
LED
Perforate dimensions
50.5 10x40.5 10 mm
Contact rating
5A@250Vac, 5A@28Vdc
Repeat accuracy
±0.3%, ±0.05 sec
Setting error
±0.5%, ±0.05 sec
Termination
8 pins
Mounting
Panel, din rail
Matched socket
PF083A, PF085A, US-08
Matched mounting accessories
FTRA01 mounting panel, FTRA02 mounting panel
Mechanical life
1x106
Electrical life
1x105
Operating temperature
-10 to 50 ℃ (14 to 131℉)
Operating humidity
45%-80% RH, non-condensing
Alias name
AH3 timer
