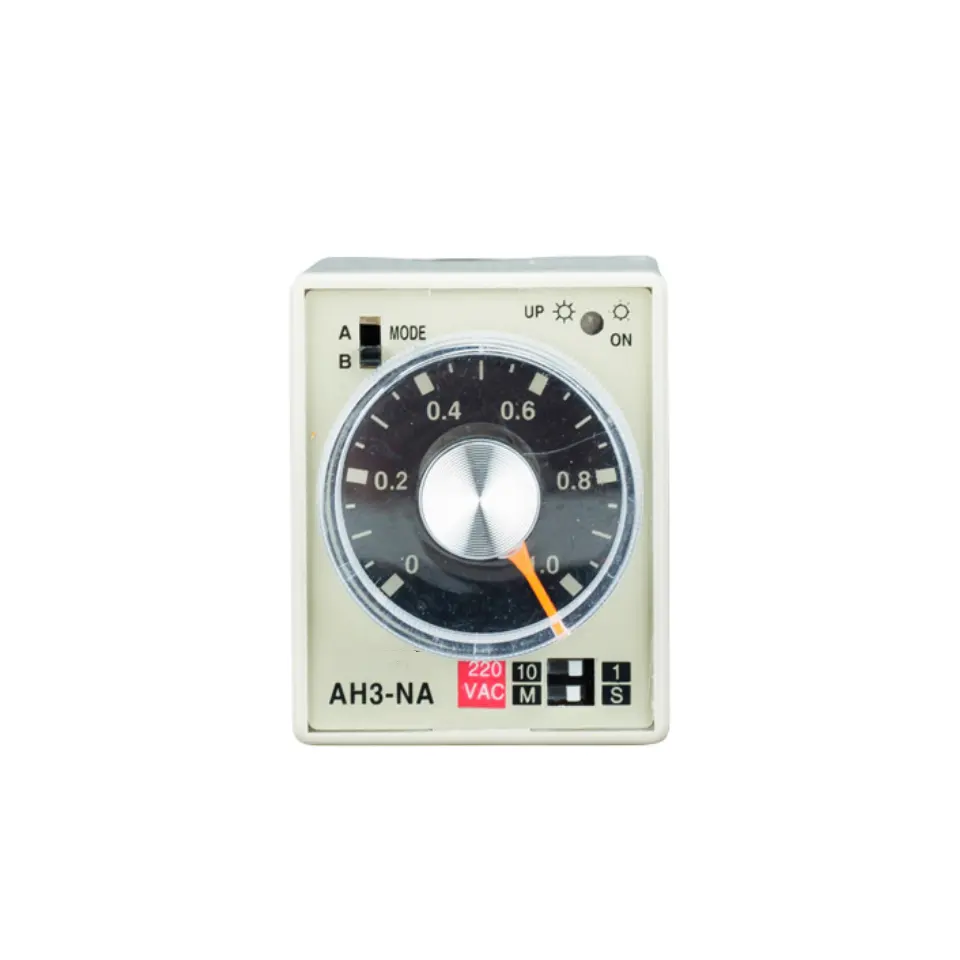

Home > Products > Time relay > AH Series > AH3-N
This manufacturer and trader offers quality control, holds product certifications, and primarily exports to the United States, Venezuela, and Ecuador with a positive review rate of 98.5%.
| Place of Origin | China |
| Product | Support product customization, including logo, product color, |
| packaging, etc | |
| HS code | 8536300000 |
| OTY/CTN | 100PCS/CTN |
| Specification | Usage：Time delay |
| Size：Miniature | |
| Protect Feature：Electromagnetic timing relay | |
| Contact Load：Low Power | |
| Number of contacts：Two sets of contacts | |
| Contact capacitance：5A/250VAC | |
| Contact form：One set of synchronous and one set of delayed | |
| Working modes：Power on delay | |
| Power consumption：About 5VA | |
| Reset time：MAX 0.1 Sec | |
| Voltage options：AC220V/DC24V | |
| Ambient temperature：-10℃+50℃ | |
| Altitude：Less than 2000m | |
| Gross Weight | 12kg |

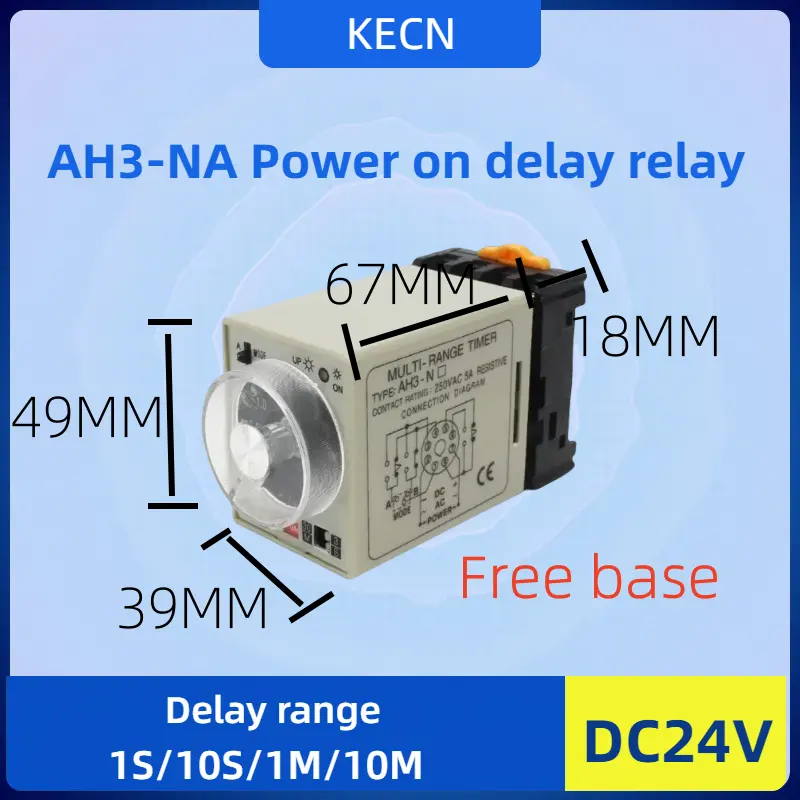

| CTN Size | 45*20*38 |
Time relays are commonly used for protecting and controlling circuits. For example, in case of overload, short circuit and other faults, the time relay can automatically cut off the faulty circuit according to the set delay time to prevent equipment damage.
