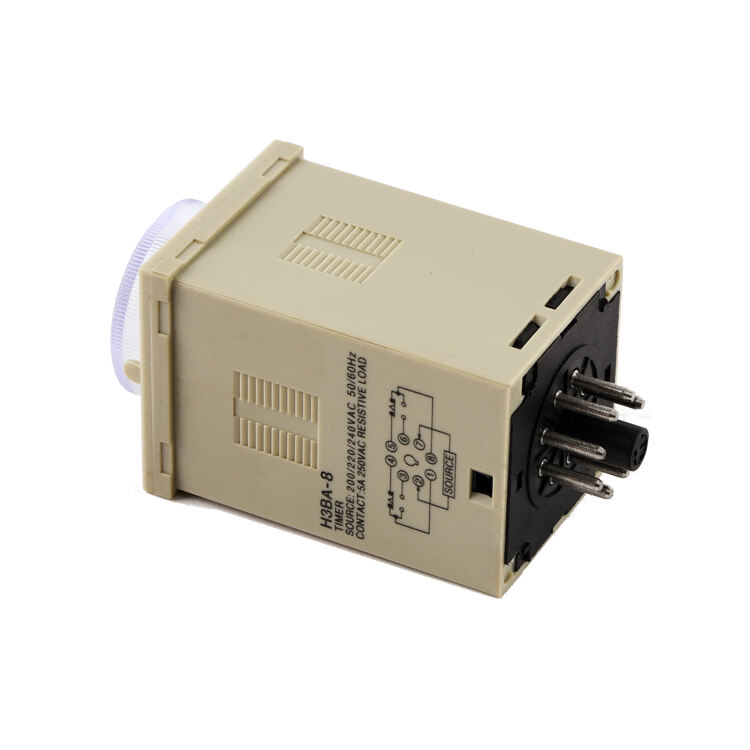

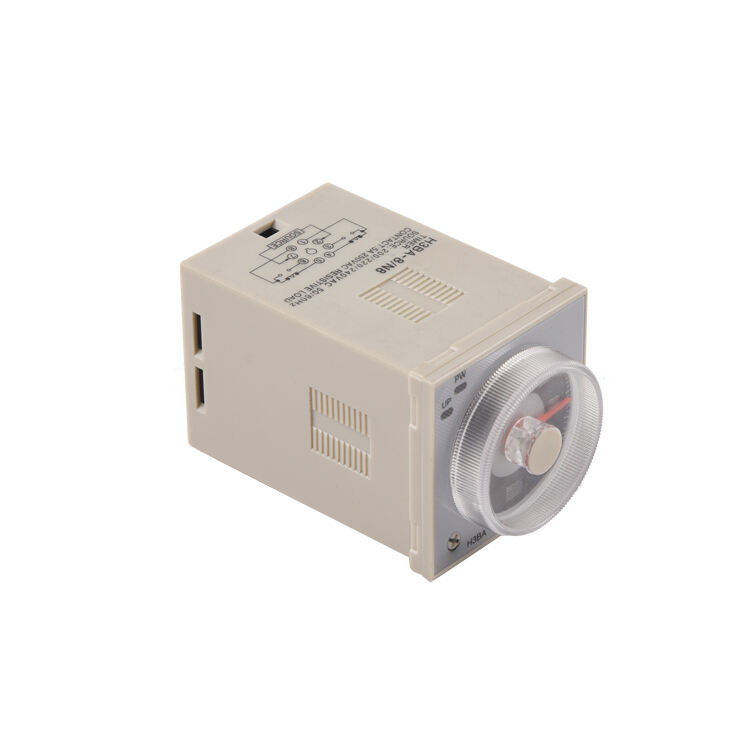

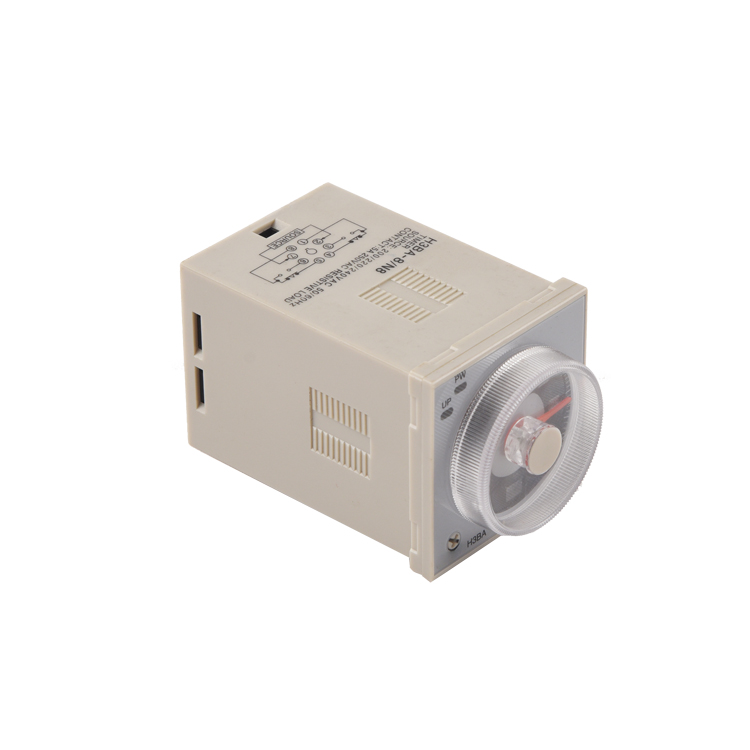

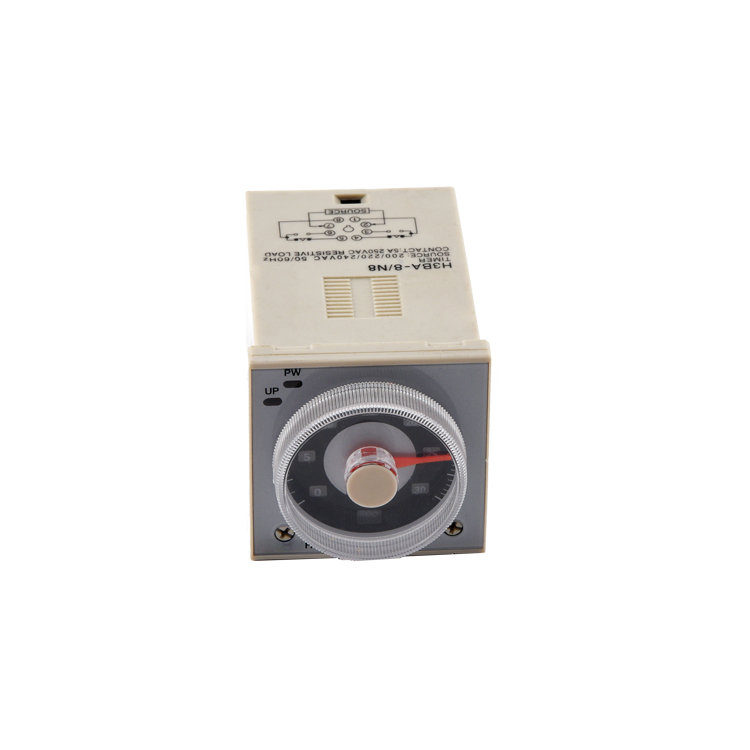

H3BA-N8

Home >  Products >  Time relay >  H3BA-N8

Products

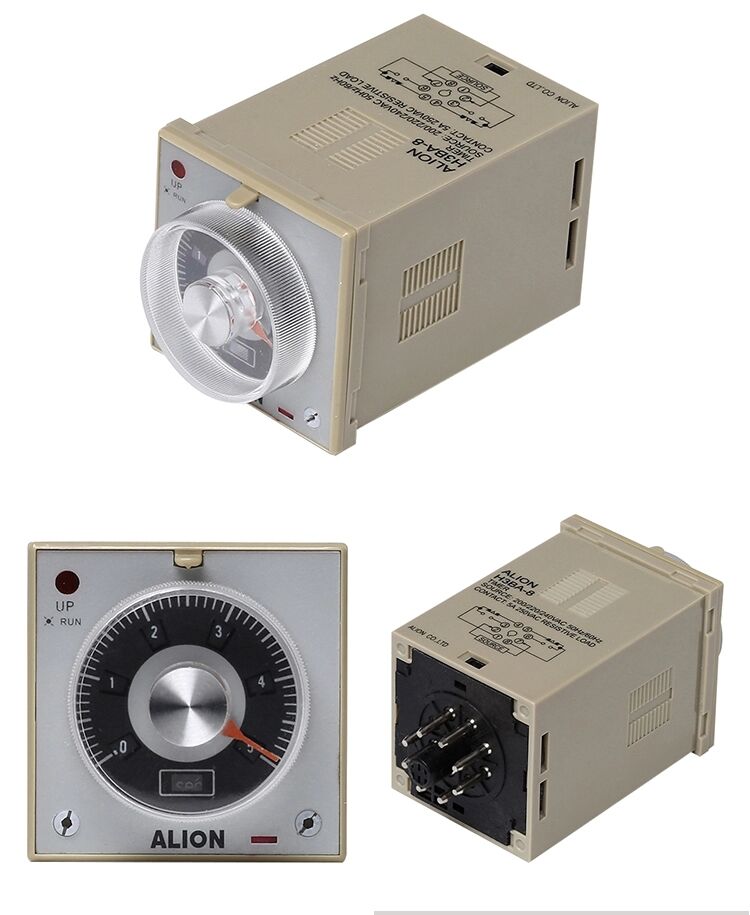

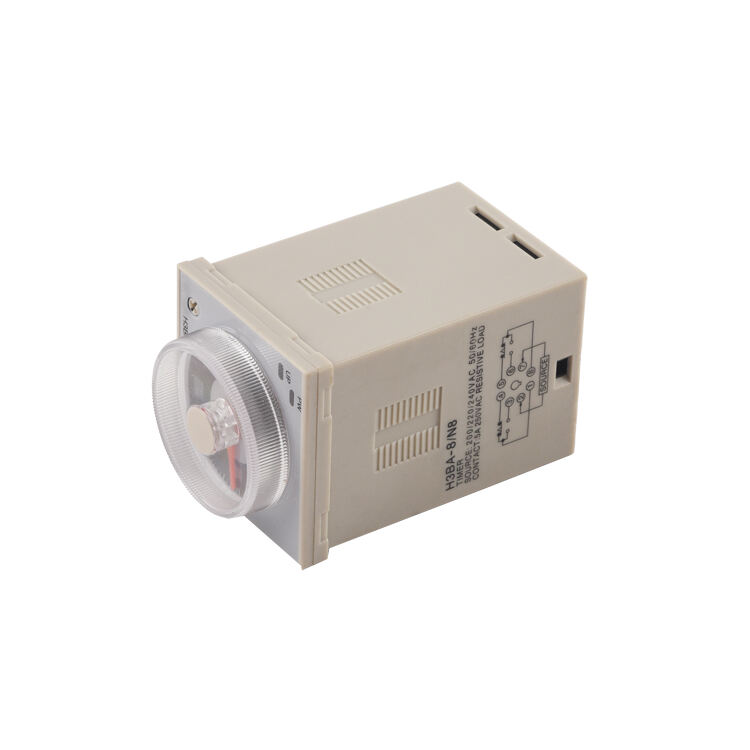

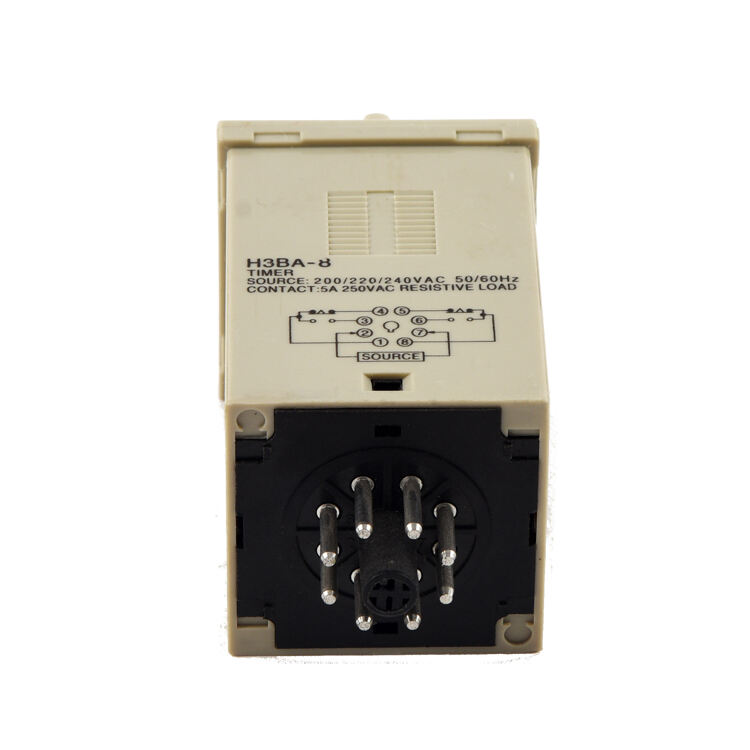

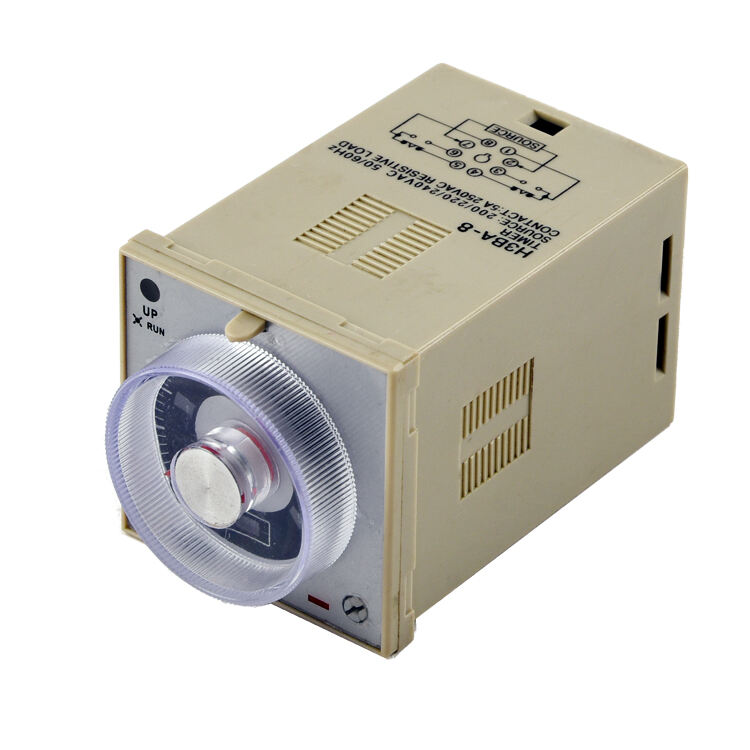

1.H3BA-N8

  • Multi-range analogue timer.
  • Time setting range of 0.5s to 100h.
  • Handles a wide range of applications through eight operating modes.

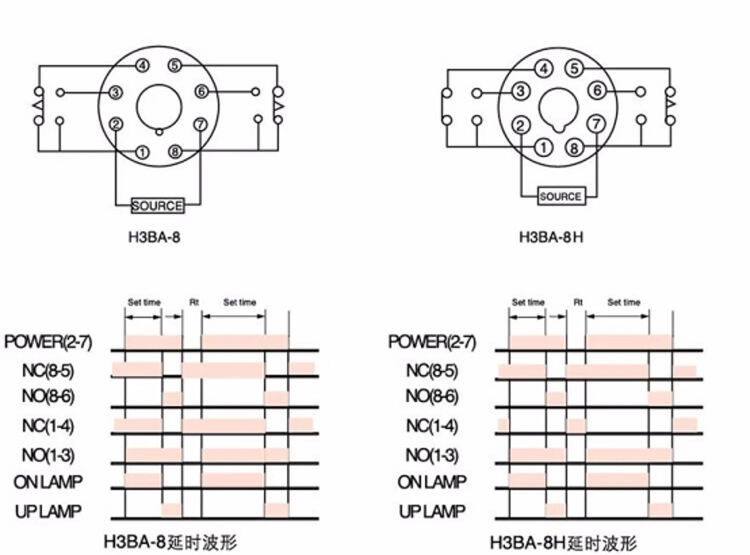

  • 2 modes selectable via slide switch: Mode A (2C) for DPDT time-limiting output contacts and Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts - Big and easy to read dial shows decimal points.
  • Timing LED Indicates Output Relay Status.
  • Product Description
  • Applications
  • Advantages
  • FAQ

Product Description

Specifications:
Place of Origin China
Product Support product customization, including logo, product color,
packaging, etc
HS code 8536300000
OTY/CTN 100PCS/CTN
Specification Full timing range:0.5SEC~100HRS
Rated voltage:24 to 240V DC/AC;DC(V):12,24,48;
AC(V):24,50,110,220
Indicator operation:Time operation flicker
Electrical:100000 times
Repeat error: ±2% max
Setting error: ±5% max
Voltage error: ±5% max
Temperature error: ±2% max
Reset time: 0.5 sec max
Ambient temperature: -10~+55
Ambient humidity: 35-85% RH
Gross Weight 12kg
CTN Size 45*20*38

Applications

Time relays are commonly used for protecting and controlling circuits. For example, in case of overload, short circuit and other faults, the time relay can automatically cut off the faulty circuit according to the set delay time to prevent equipment damage.
The H3BA series Multi-range analogue timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you can choose, it mainly used for equipment control.

Advantages

1、 Voltage protector, refrigerator protector, safety upgrade, more sensitive response, six major functional features, quality. 2、 Certification, precision circuit, flame-retardant plastic, tool free installation, high-quality touch, durability, high-performance chip, higher stability and strong accuracy, instantaneous protection against over-voltage/under-voltage, and self-checking of working status based on power consumption status!
3、 Possess rich industry knowledge and experience, and be able to provide professional solutions and services.
4、 Possess a certain competitive advantage in terms of price, providing cost-effective products/services with high-quality/reliable performance.
5、 Close cooperation with customers, including understanding and meeting their needs, as well as high-quality after-sales support and services.
6、 The company has a good reputation and recognition in the industry.
7、 The company has reliability, stability, and sustainability in long-term business operations.

FAQ

Q:Are you a Source factory?
A:Yes, we are the source factory, in this industry has ten years of manufacturing experience and technology, with 2870 square meters of production workshop.
Q:How about the quality of your products?
A:We have professional quality control links from raw material procurement to production process to ensure product consistency and quality stability, and will require suppliers to provide ISO quality certification and control the quality source in an all-round way.
Q:Do your products meet the quality standards and regulations of the importing country?
A:Our products have obtained CE certification and other corresponding qualifications to meet local quality requirements.
Q:Does your company support customization?
A:Yes, our company has its own brand, and we also support customers to customize trademarks.
Q:What is the minimum order quantity (MOQ) of your company?
A:Our company's minimum Order quantity (MOQ) is very flexible, and we will negotiate with customers about the appropriate MOQ to avoid excessive financial pressure on customers.
Q:Can you ensure delivery on time?
A:Our factory has a strong production capacity, while maintaining a reasonable production inventory level, can effectively ensure on-time delivery, to ensure the supply needs of customers.
Q:How long is the delivery time?
A:After the order is confirmed and the advance payment is received, the regular products will be shipped on time according to the delivery time agreed on in the contract, which can be as short as a few days or as long as three to four weeks.
Q:What is the company's return policy?
A:If it is due to product quality problems or defects, within the specified period, customers can contact the company, after verification and confirmation can be returned or repaired to protect the rights and interests of customers.
